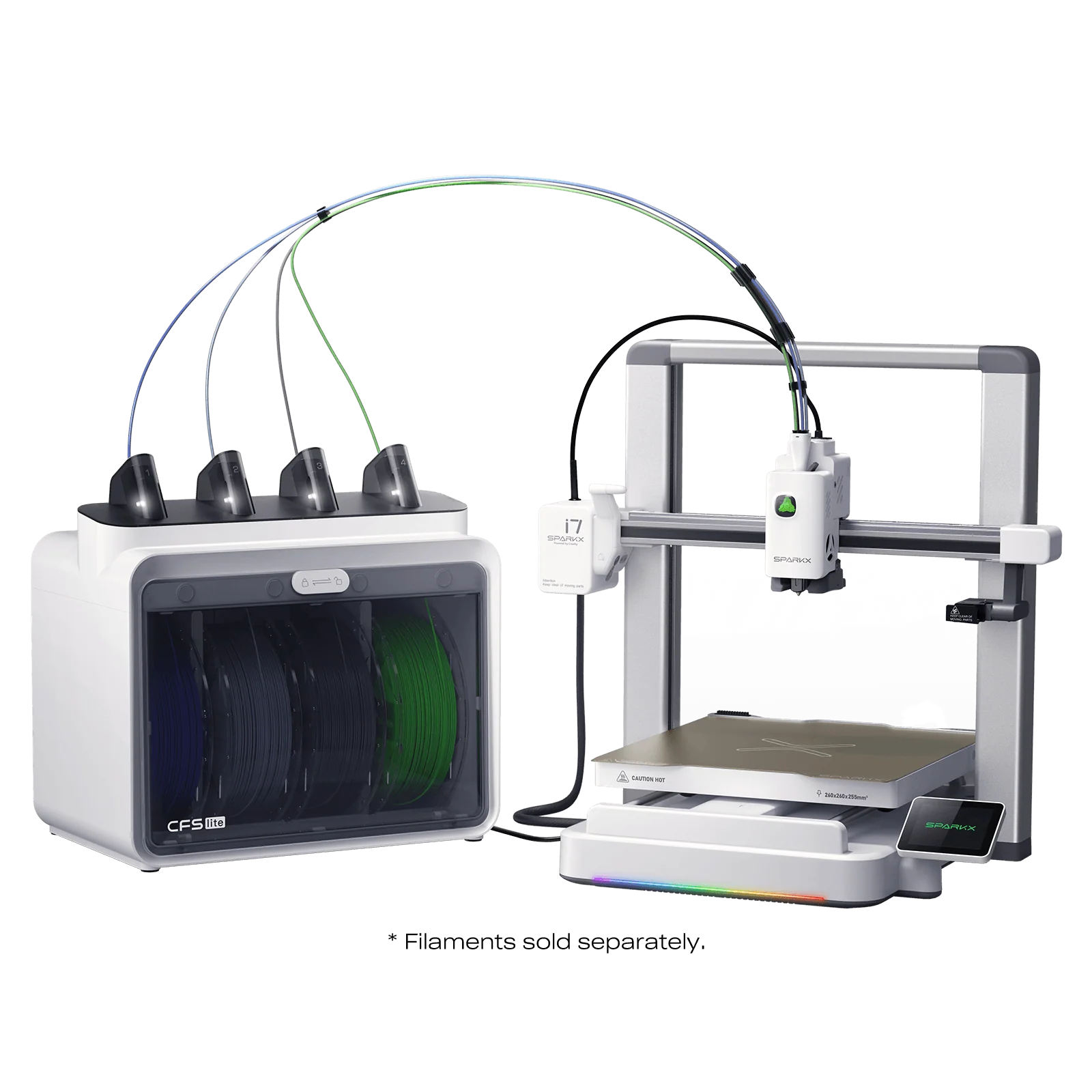

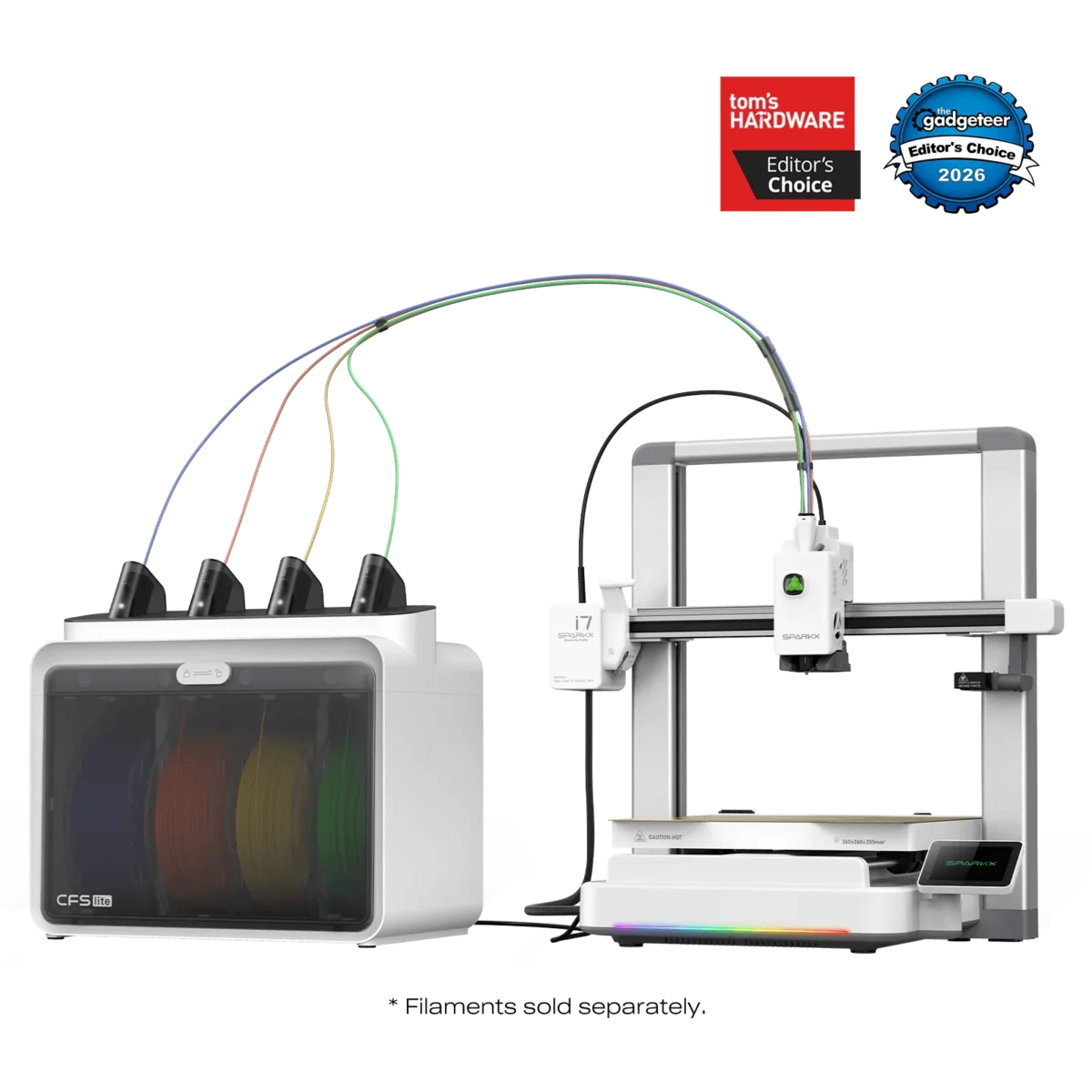

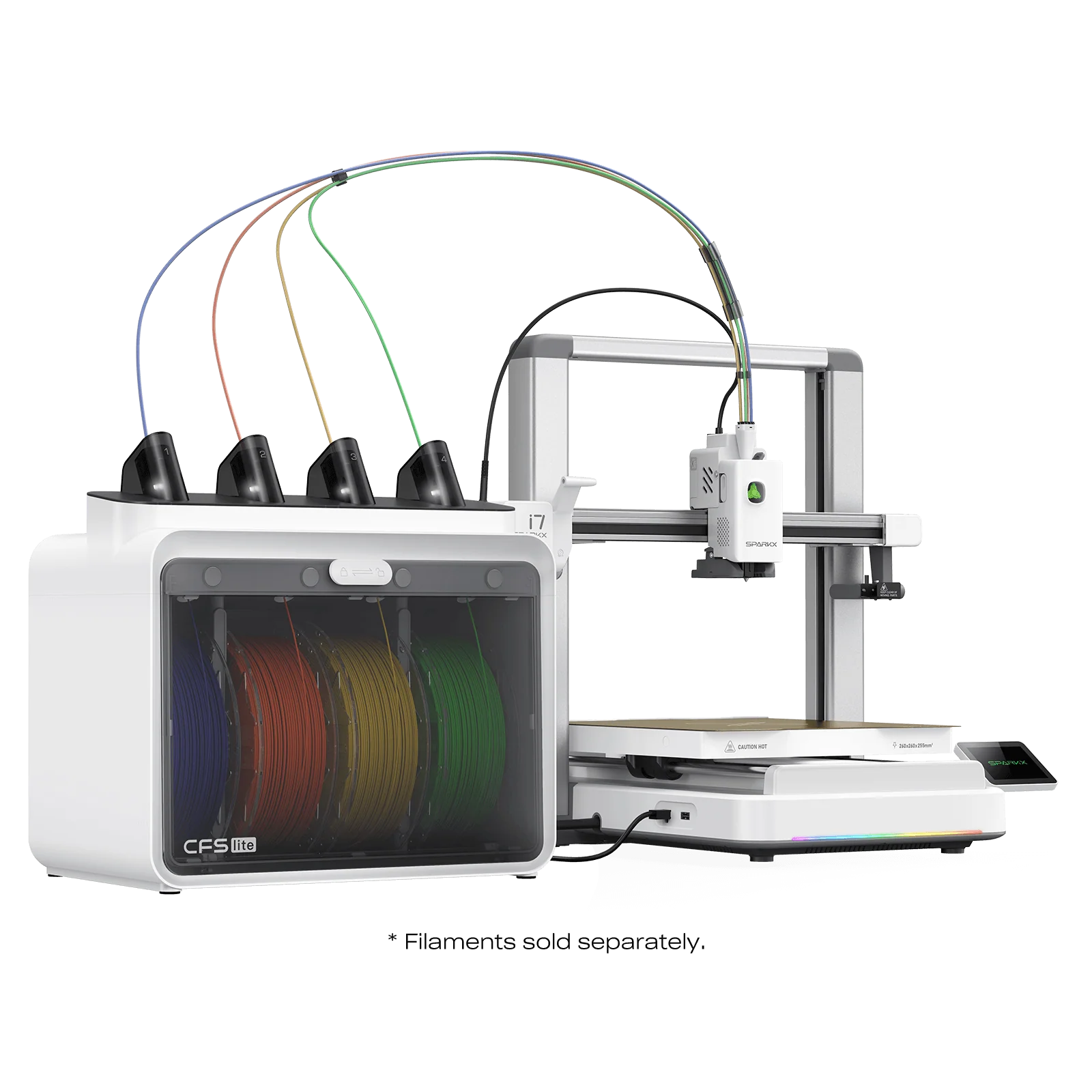

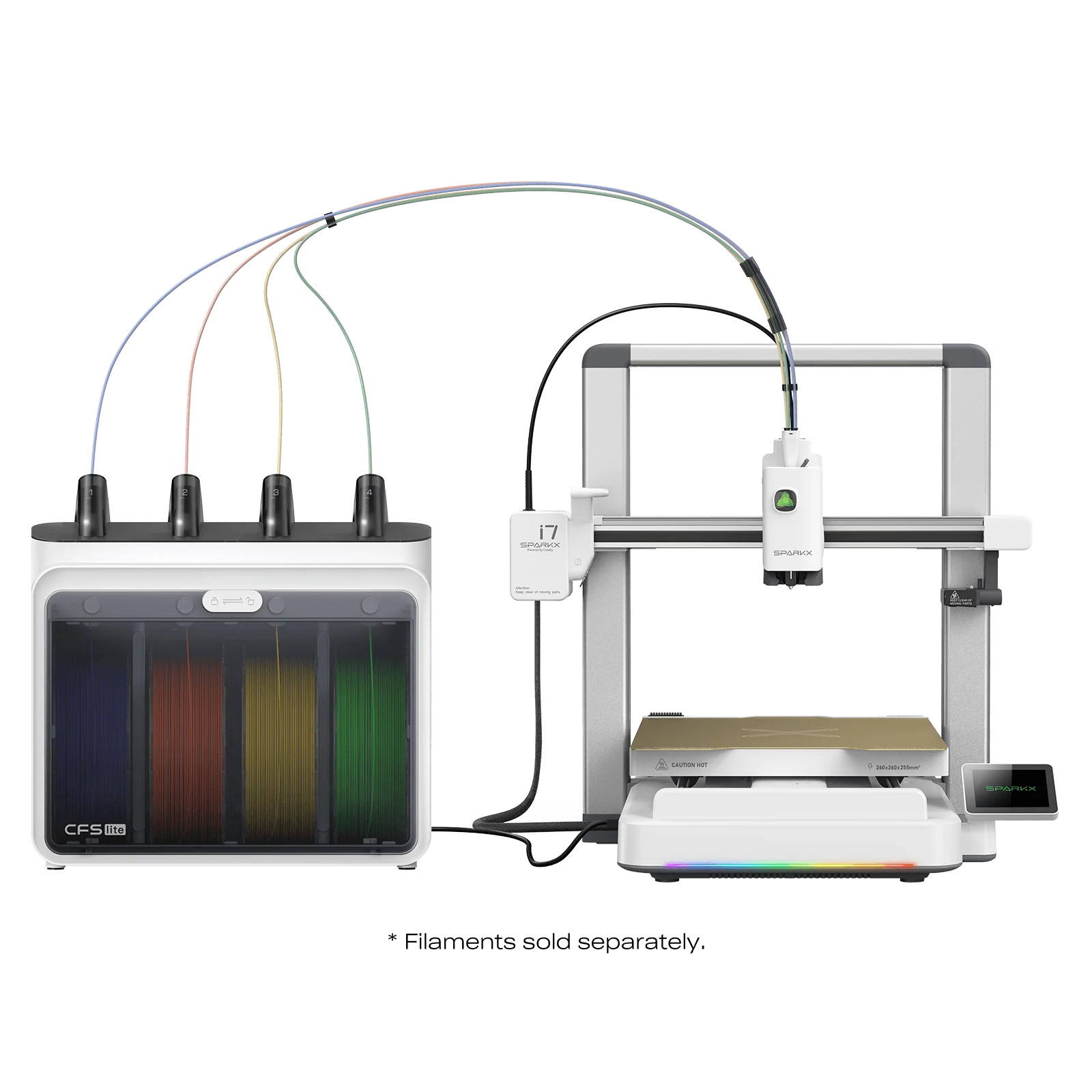

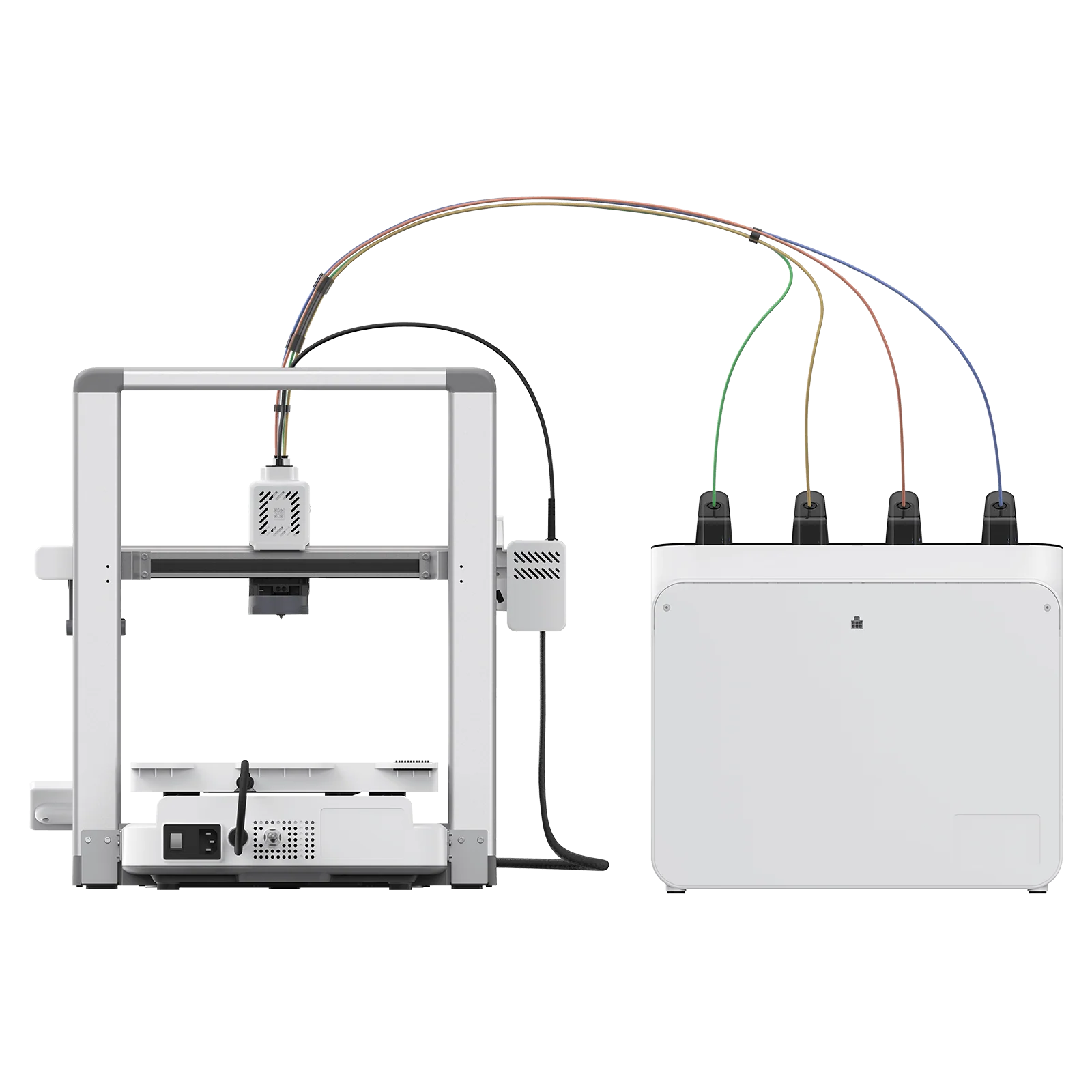

Creality SPARKX i7 Color Combo 3D Printer with CFS Lite

The Creality SPARKX i7 3D printer delivers a smart, beginner-friendly experience, with the CFS Lite system for multi-color printing, an AI camera for monitoring, and a quick setup that takes just minutes.

Key Features

• Printing technology: Fused Filament Fabrication – FFF
• Build volume: 260 × 260 × 255 mm
• Multi-color printing via CFS Lite
• Turn a photo into a 3D model with AI Photo-to-3D
• Up to 50% less filament waste in multi-color printing
• Quiet 45dB Night Mode
• RGB print-status lighting

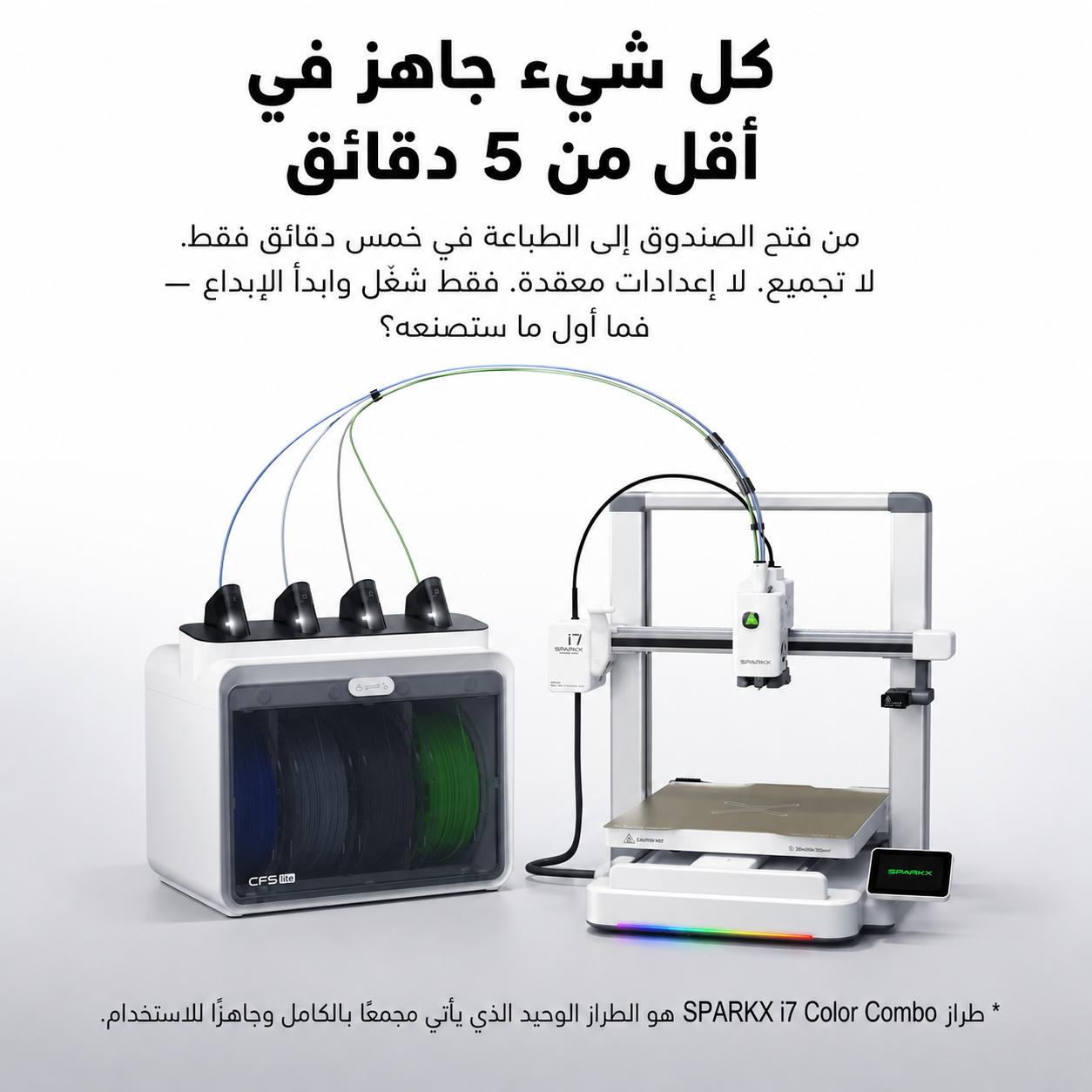

• Quick setup from unboxing to first print in under 5 minutes

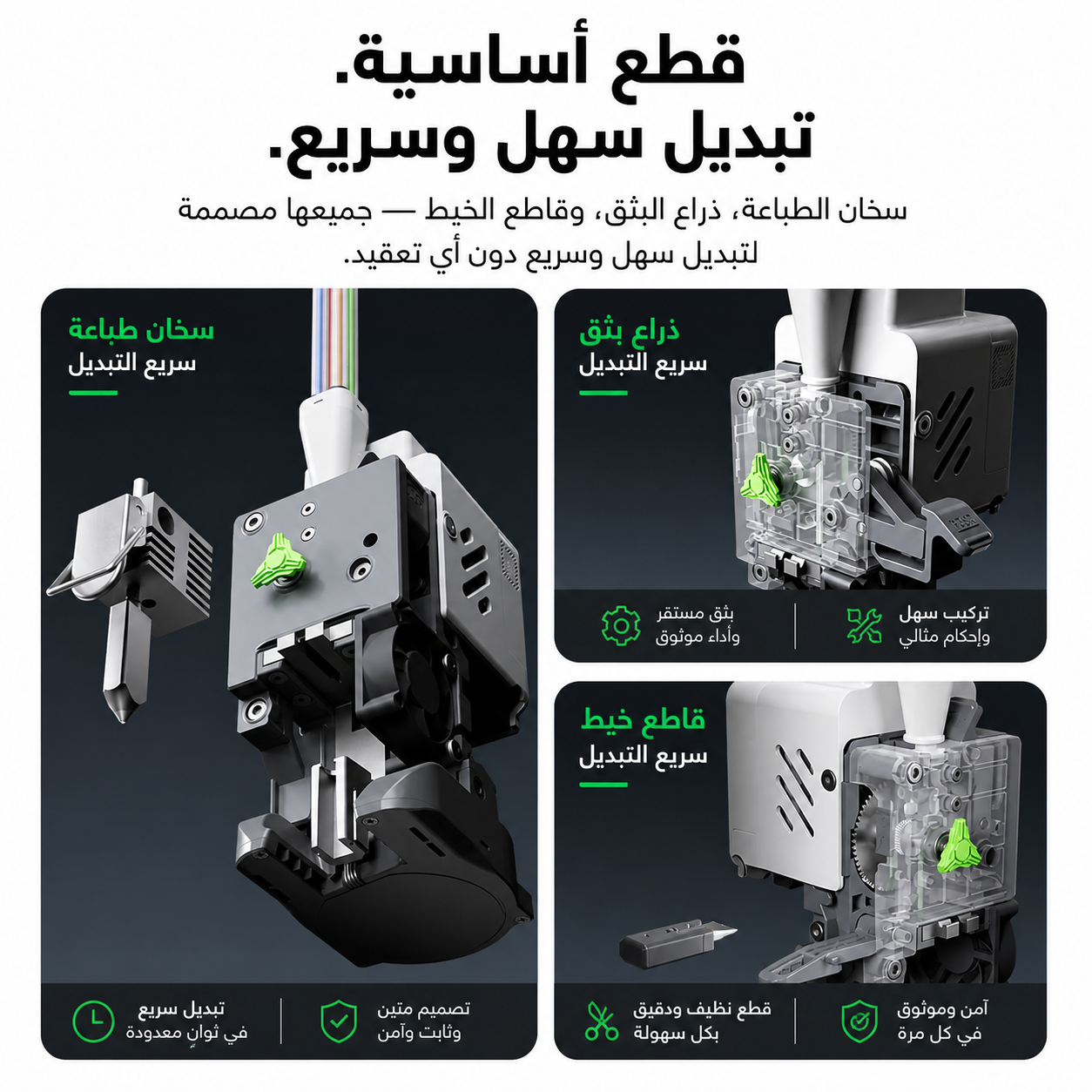

• Tool-free Quick-Swap Parts
• Print speed up to 500 mm/s
• Acceleration up to 10,000 mm/s²
• Nozzle temperature up to 300°C
• Bed temperature up to 100°C
• 720p AI camera with lighting
• Fully automatic bed leveling
• Worldwide voltage: 100–240V, 50/60Hz

Technical Specifications

Printing technology: Fused Filament Fabrication – FFF
Model name: SPARKX i7
Build volume: 260 × 260 × 255 mm

Printer dimensions: 470 × 423 × 456 mm
Net weight: 9.12 kg

Toolhead and Printing

Extruder: Direct Drive Extrusion
Filament diameter: 1.75 mm
Nozzle diameter: 0.4 mm
Supported nozzles: 0.2 / 0.6 / 0.8 mm
Max nozzle temperature: 300°C
Quick-swap hotend: Yes, tool-free
Pressure Advance: Yes

Heated Bed

Build plate: Dual-sided Textured Golden PEI
Max bed temperature: 100°C
Build plate detection: Yes

Performance

Print speed: up to 500 mm/s
Acceleration: up to 10000 mm/s²
Print accuracy: 100 ± 0.1 mm
Layer height: 0.05 – 0.3 mm
Input Shaping: Yes

Camera and Sensors

• 720p AI camera with lighting
• AI camera Spaghetti Detection for failed prints
• Air Printing Detection
• Filament run-out sensor
• Filament tangle detection
• Power-loss recovery
• Cutter Wear Monitoring
• Belt tensioning: manual

Electrical and Power

Input voltage: 100–240V AC, 50/60Hz
Rated power: 700W @ 220V / 400W @ 110V

Display and Connectivity

Display: 2.85-inch color touchscreen
File transfer: USB Drive / Wi-Fi
Storage: 8GB EMMC
Wi-Fi: 2.4GHz
Communication port: RS 485 (6-pin)
Operating system: Creality OS
File formats: G-code / 3MF
Slicer: Creality Print 6.3 or later

CFS Lite System

Product: CFS Lite
Compatible model: SPARKX i7
Dimensions: 362 × 227 × 364 mm
Net weight: 3.42 kg
Filament slots: 4
Drying method: Desiccant
Filament feed motors: 4, one per slot
Multi-color printing: Yes
Automatic filament recognition: Yes, with Creality RFID Filaments
Automatic filament refill: Yes
Filament preloading: Yes
Filament runout detection: Yes
Air printing / filament tangle detection: Yes
Works with one CFS Lite unit (multiple units cannot be connected)

Supported Materials

The printer supports:

PLA / PLA-Silk / PETG / TPU / PLA-CF

The CFS Lite system supports:

PLA / PETG / PLA-CF / TPU shore 64D or harder

Important Notes

• This product is the Creality SPARKX i7 Color Combo with CFS Lite
• Includes the CFS Lite system for multi-color printing
• The CFS Lite system has 4 filament slots
• Works with one CFS Lite unit (multiple units cannot be connected)
• Supports 100–240V power, ready to use across the Gulf
• Any filament or accessories not listed in the bundle contents are sold separately

Color Combo Edition Components and Features

The Creality SPARKX i7 Color Combo edition comes with the CFS Lite system for multi-color printing, along with dedicated features that make operation and filament management effortless.

Note: This table shows the components and features of the
SPARKX i7 Color Combo edition according to the official comparison chart, and is not a complete itemized list of the box contents.
