Creality RaptorX Wireless 3D Scanner

Name: Creality RaptorX Wireless 3D Scanner
Price: 23949 SAR
Availability: InStock

RaptorX 3D Scanner, A wireless hybrid 3D scanner from Creality that combines blue laser and near-infrared (NIR) scanning, with accuracy up to 0.02 mm. Ideal for capturing small and large objects alike with professional precision and no cables to hold you back., Creality RaptorX 3D Scanner, Avloon, 3D scanner price, A wireless hybrid 3D scanner from Creality that combines blue laser and near-infrared (NIR) scanning, with accuracy up to 0.02 mm. Ideal for capturing small and large objects alike with professional precision and no cables to hold you back., 3D scanner, Wireless scanner

Original price was: SAR 38,632.00.Current price is: SAR 23,949.00.-38% OFFVAT included

A wireless hybrid 3D scanner from Creality that combines blue laser and near-infrared (NIR) scanning, with accuracy up to 0.02 mm. Ideal for capturing small and large objects alike with professional precision and no cables to hold you back.

In stock

100% Secure Payment

Brand

Specifications

Brand	A wireless hybrid 3D scanner from Creality that combines blue laser and near-infrared (NIR) scanning, with accuracy up to 0.02 mm. Ideal for capturing small and large objects alike with professional precision and no cables to hold you back.

Product Details

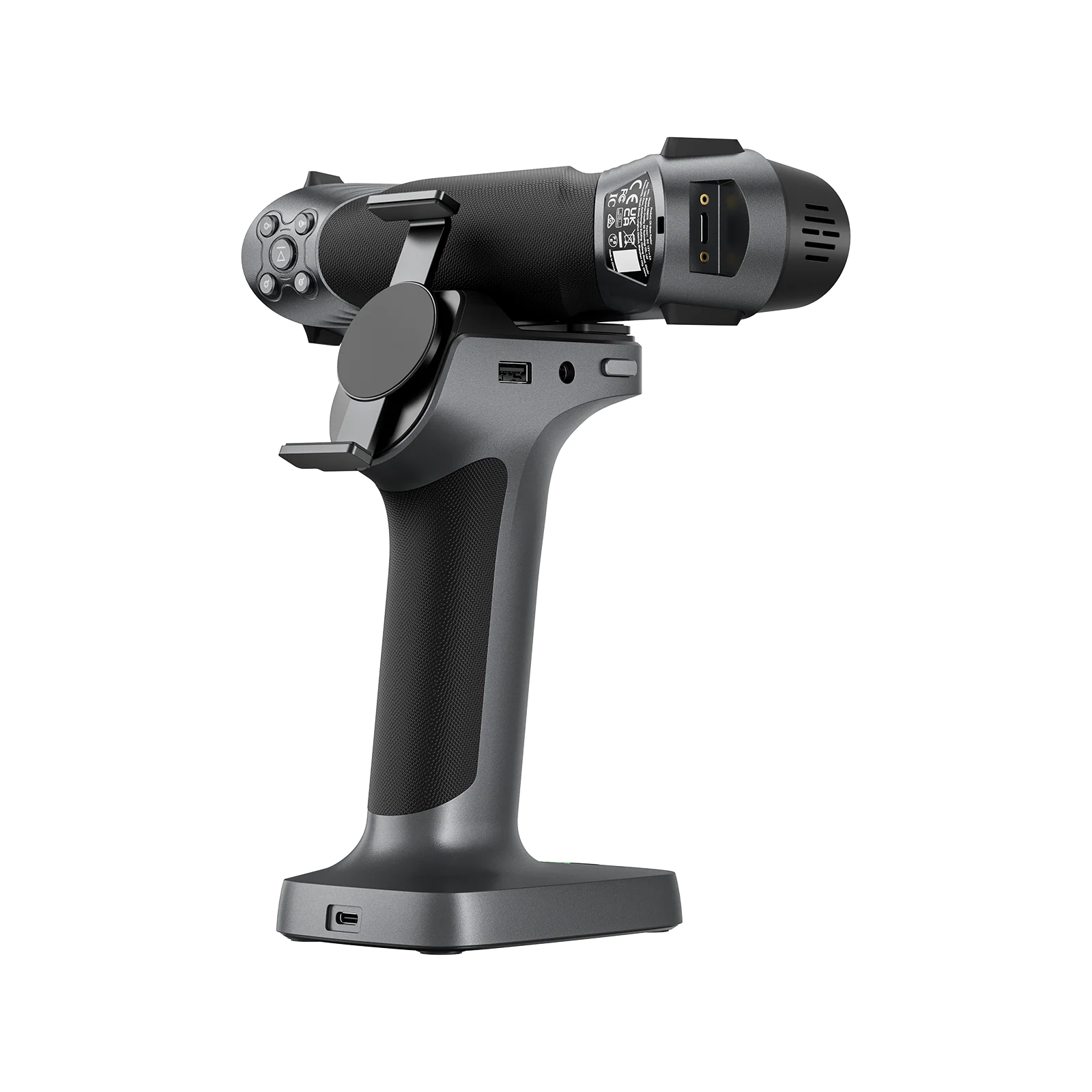

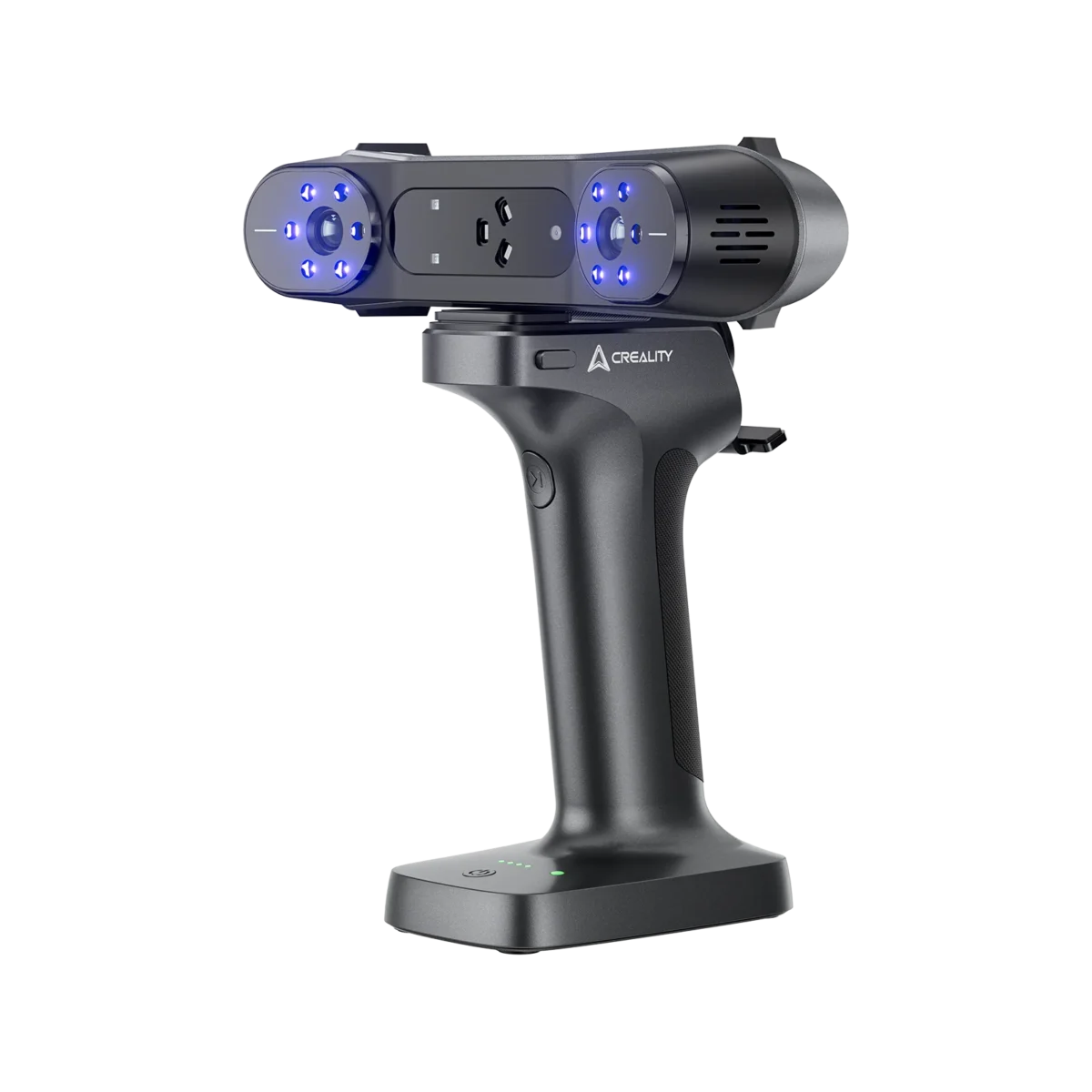

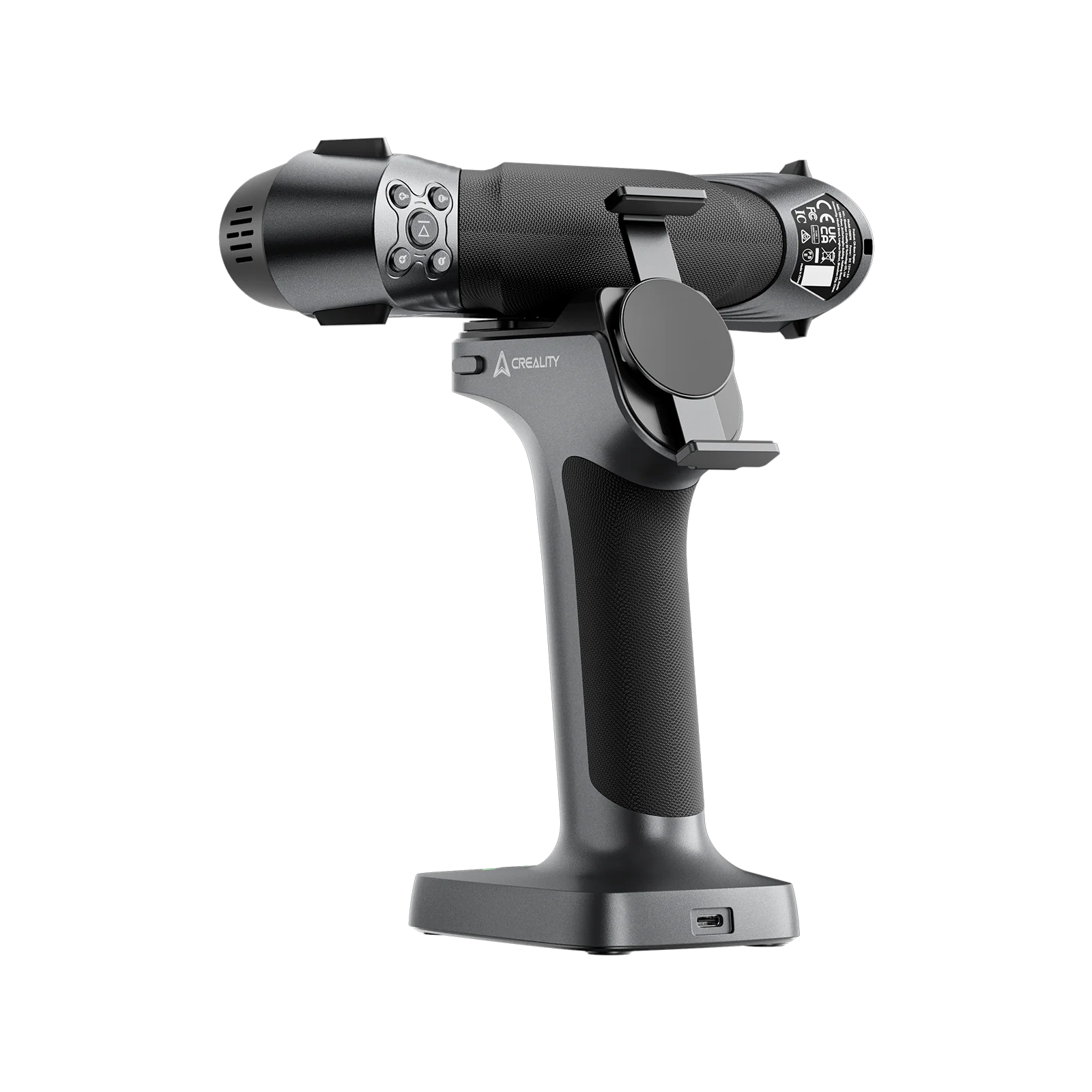

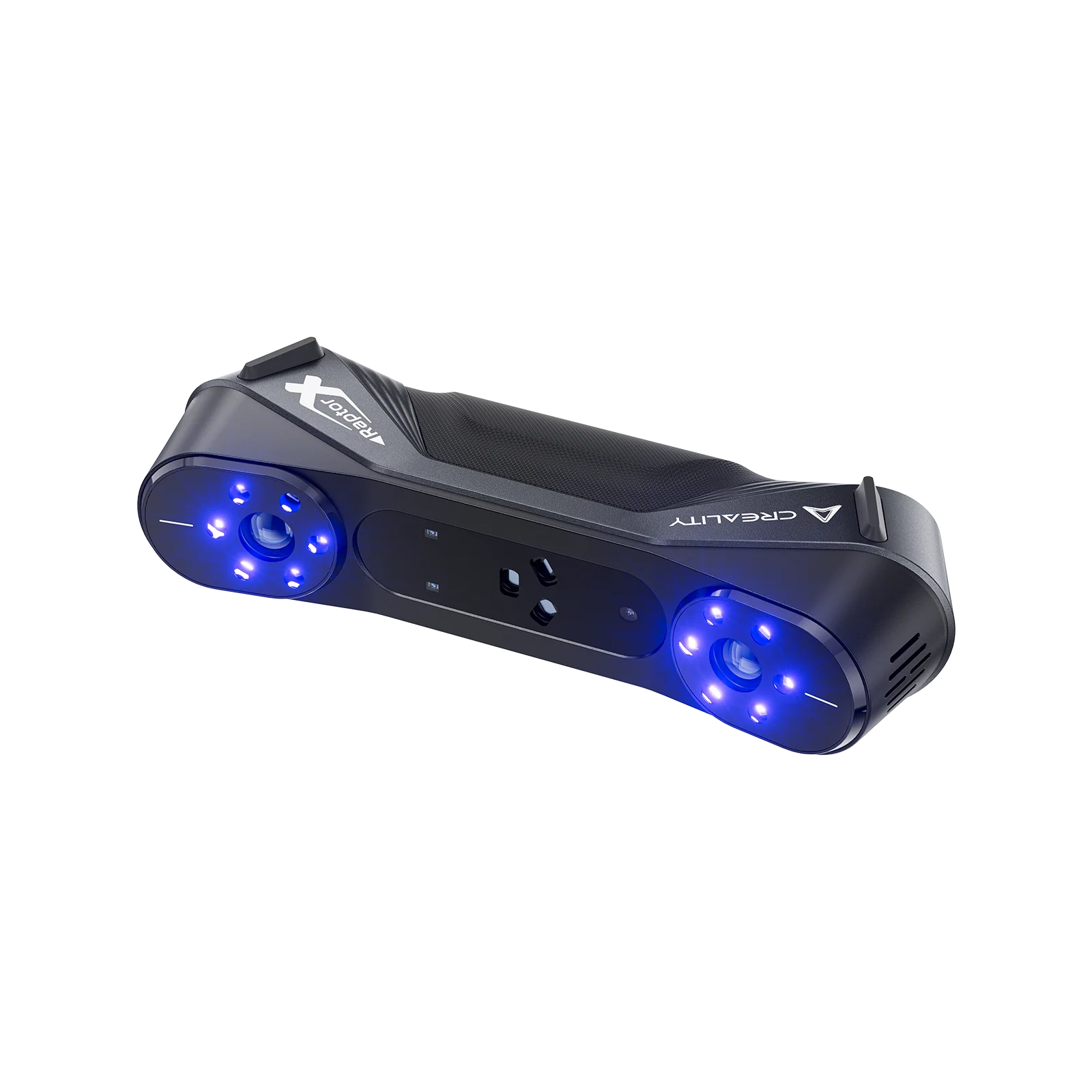

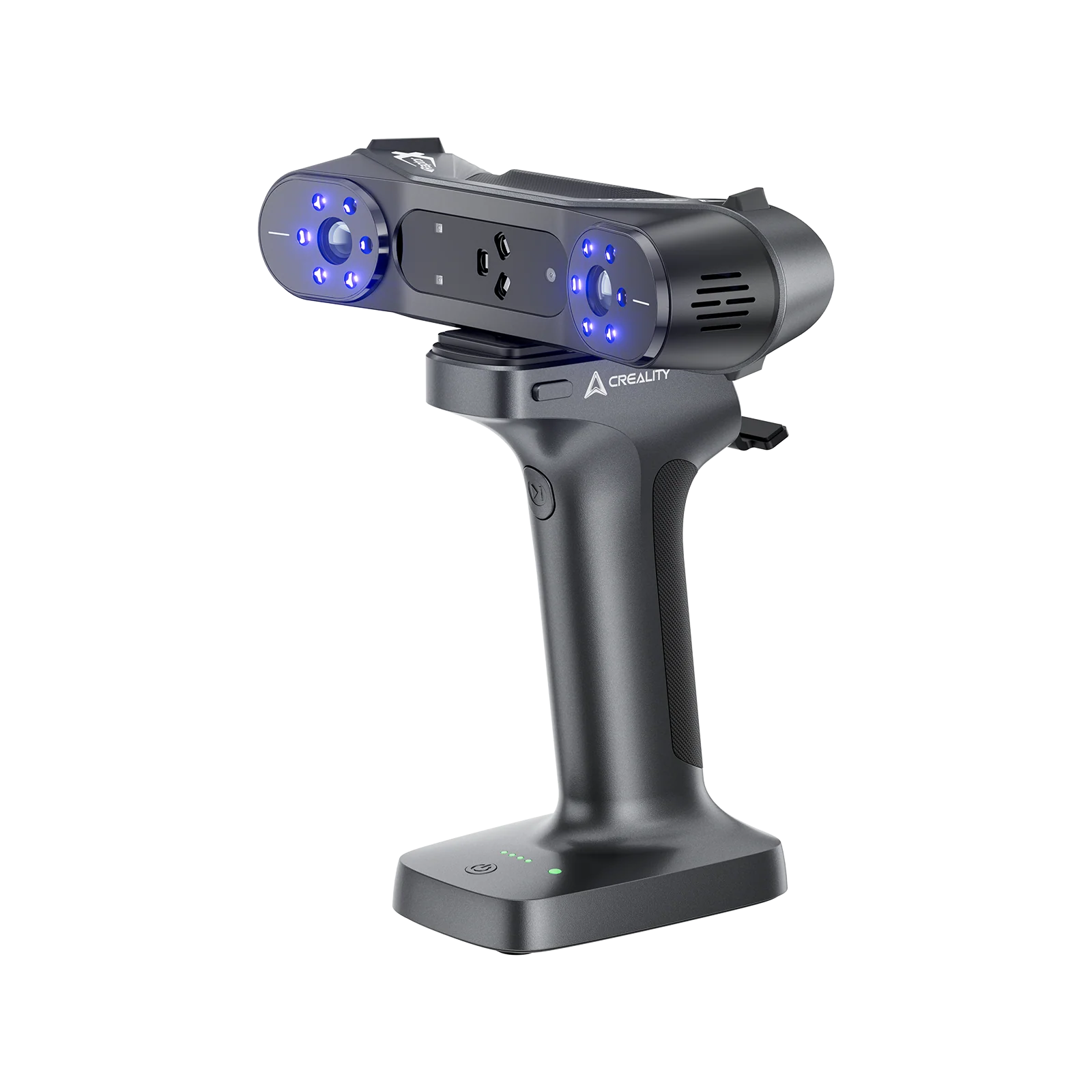

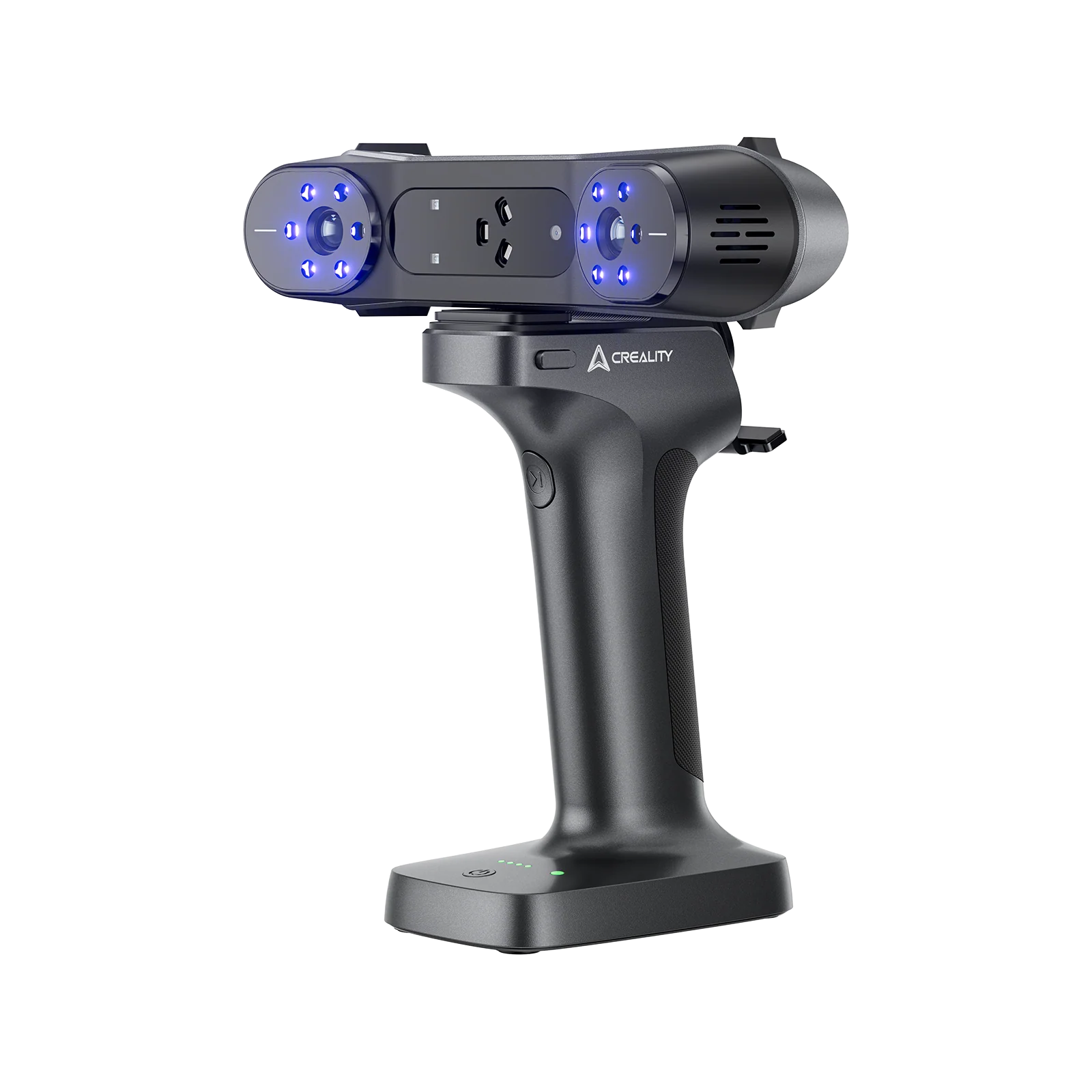

Creality RaptorX 3D Scanner

If you're looking for professional measurement accuracy without the constraints of cables, the Creality RaptorX 3D Scanner is the world's first device to combine hybrid blue laser technology and near-infrared (NIR) scanning in a single, fully wireless unit. It was designed to let engineers, designers and 3D printing enthusiasts capture fine detail on objects as small as jewelry or as large as vehicles, with complete freedom of movement and remarkable speed.

Key Features

Benchmark accuracy up to 0.02 mm, suited to precision engineering work.
Dual technology combining blue laser and NIR to scan a wide range of surface types.
Ultra-fast wireless connection over Wi-Fi 6 with very low latency.
Long-lasting battery for up to 4 hours of continuous scanning.
Flexible scanning range from small parts starting at 5 mm to massive objects up to 4000 mm.
Markerless scanning with dedicated face and body modes.

What's in the Box

RaptorX 3D Scanner
Built-in rechargeable battery
Charger and power adapter
Protective carrying case
Quick start guide

Technical Specifications

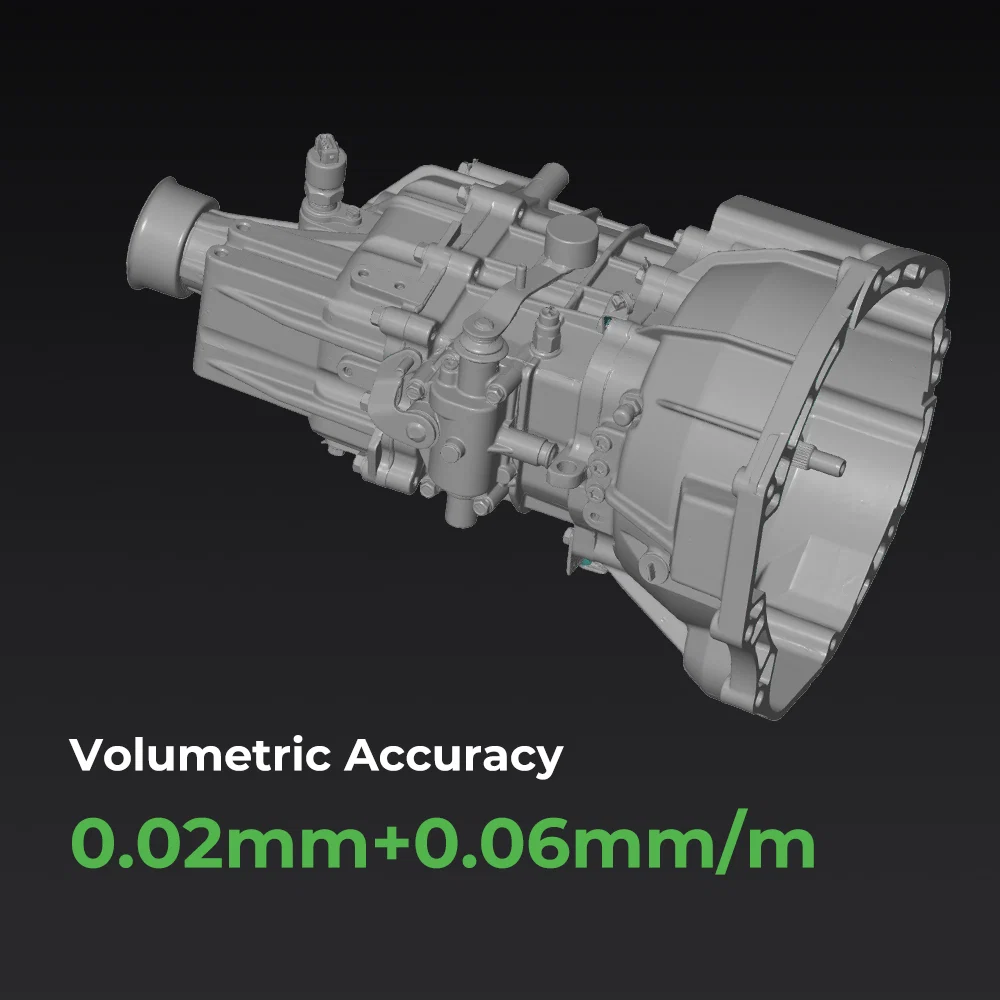

Volumetric accuracy	0.02 mm + 0.06 mm/m

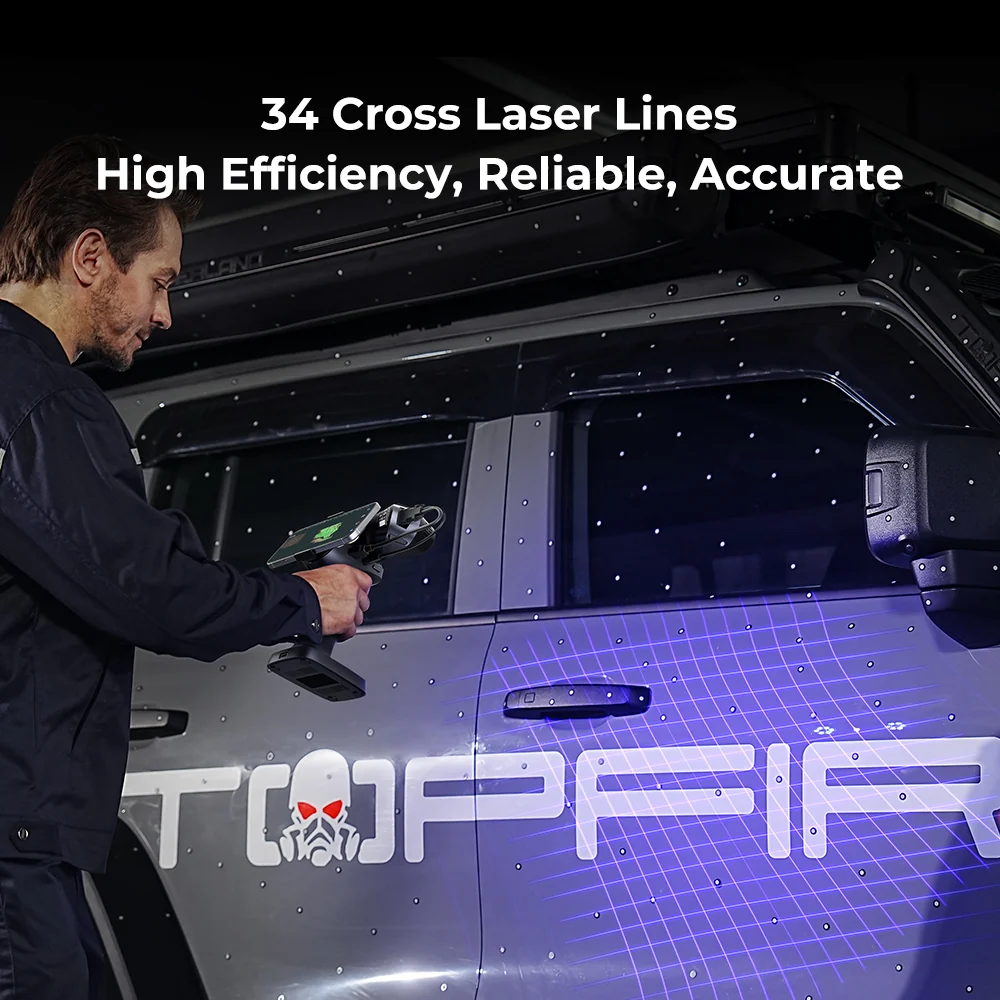

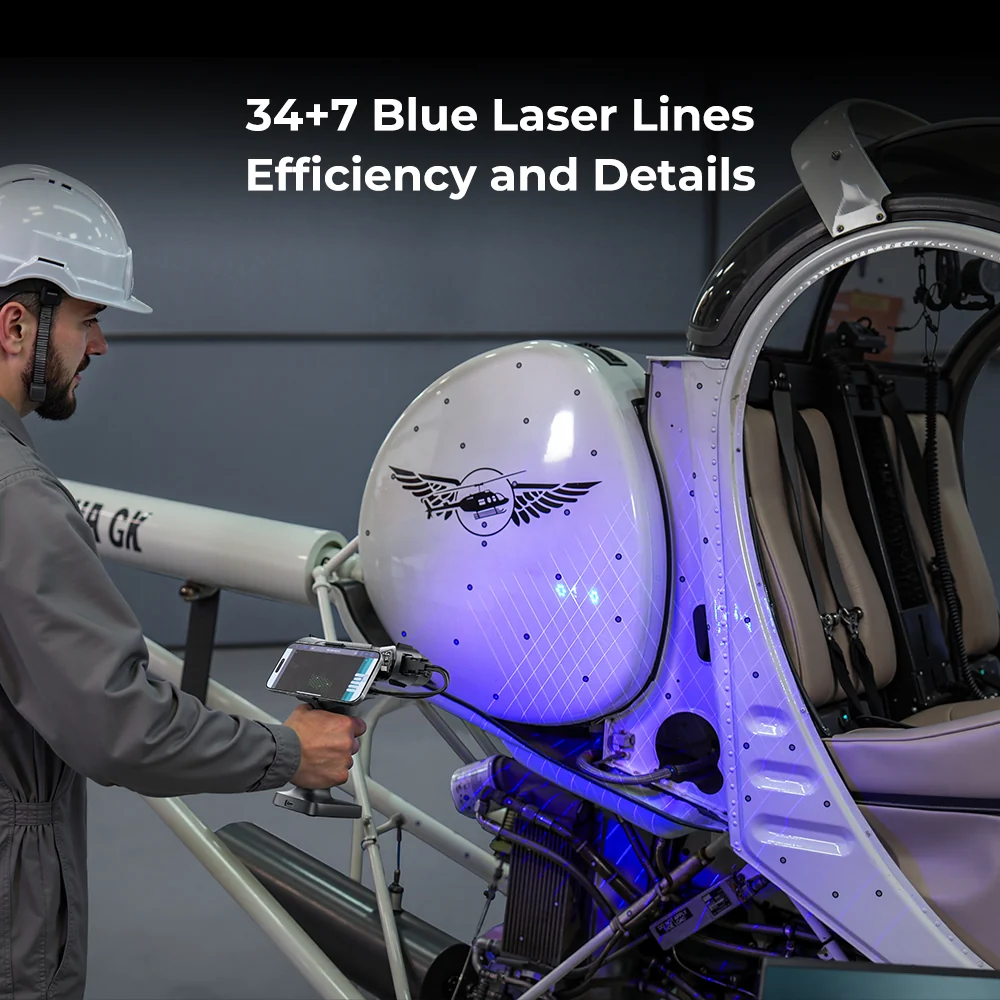

Blue laser lines	34 cross laser lines + 7 parallel laser lines

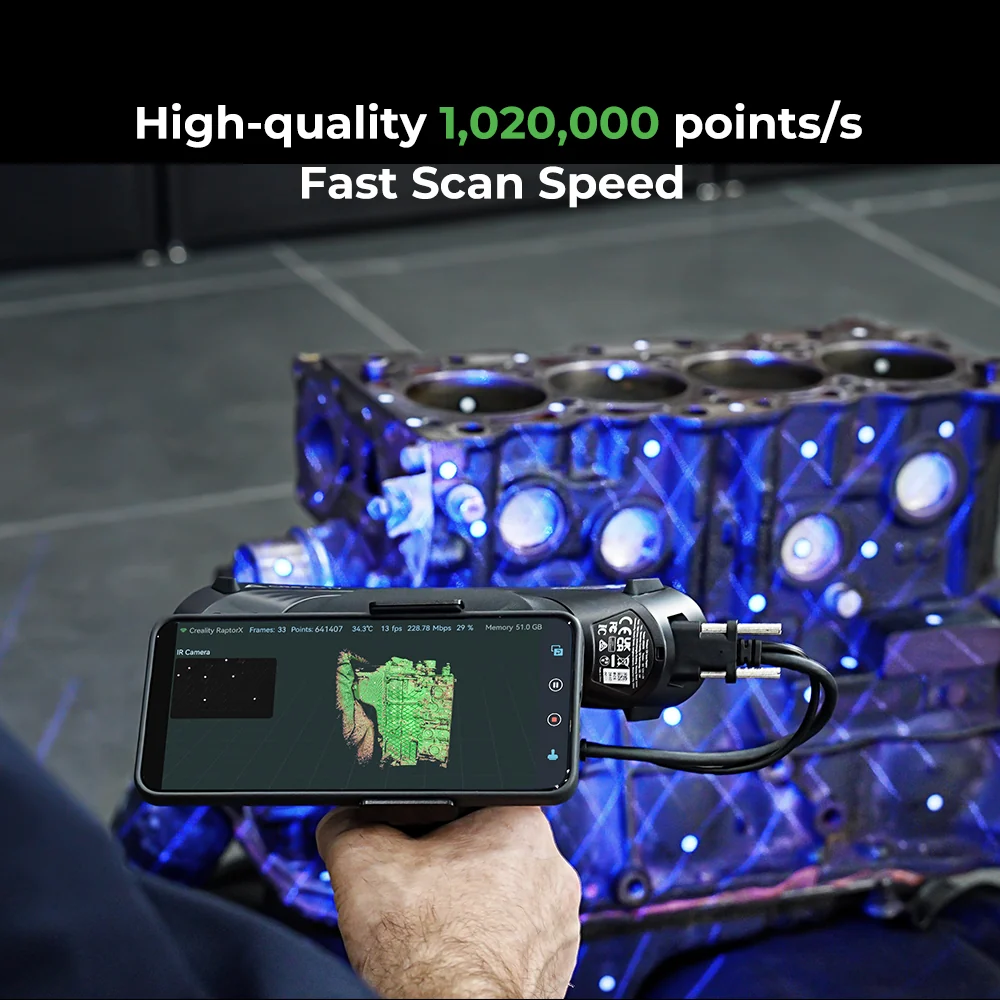

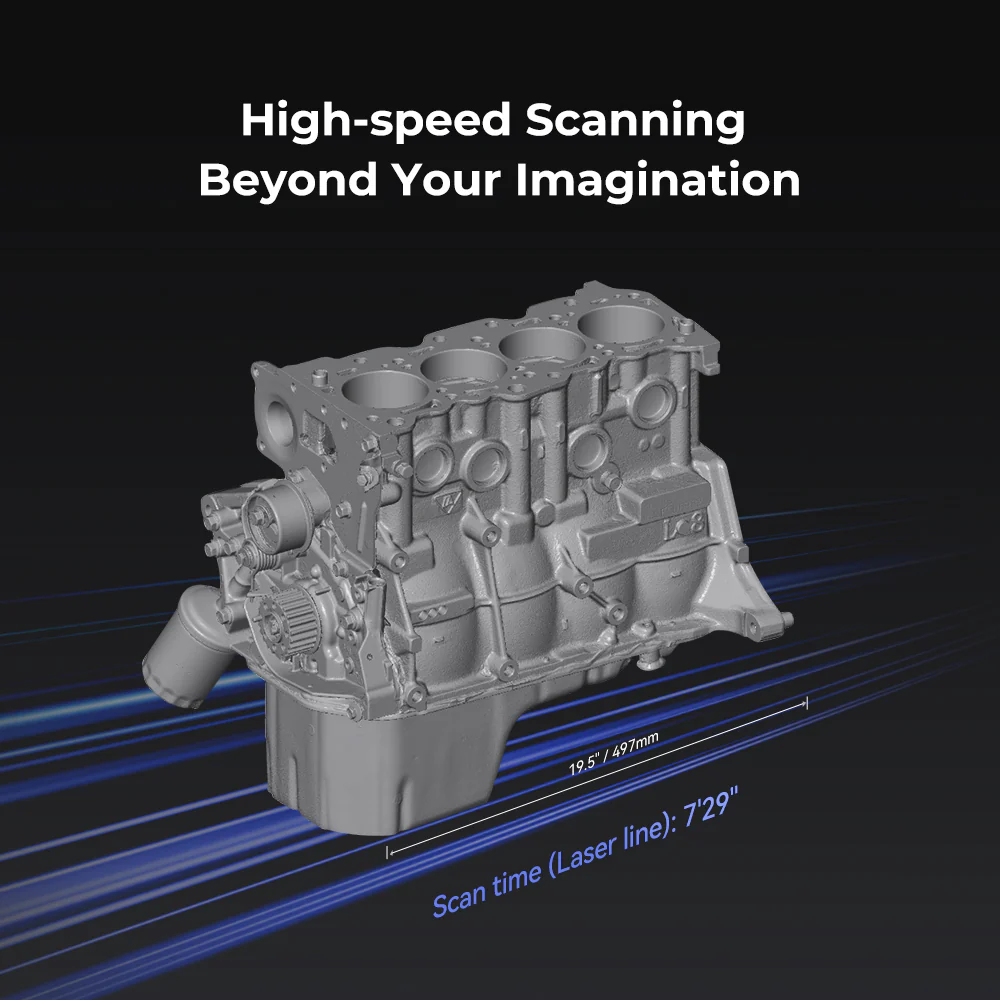

Measurement speed (34 cross lines)	1,020,000 points/s
Additional scanning technology	NIR structured light
Frame rate – laser scanning	Up to 60 fps
Frame rate – NIR	Up to 30 fps
Object size range	0.2–157 in / 5–4000 mm
Laser scanning range	5×5×5 mm³ to 4000×4000×4000 mm³
NIR scanning range	150×150×150 mm³ to 2000×2000×2000 mm³

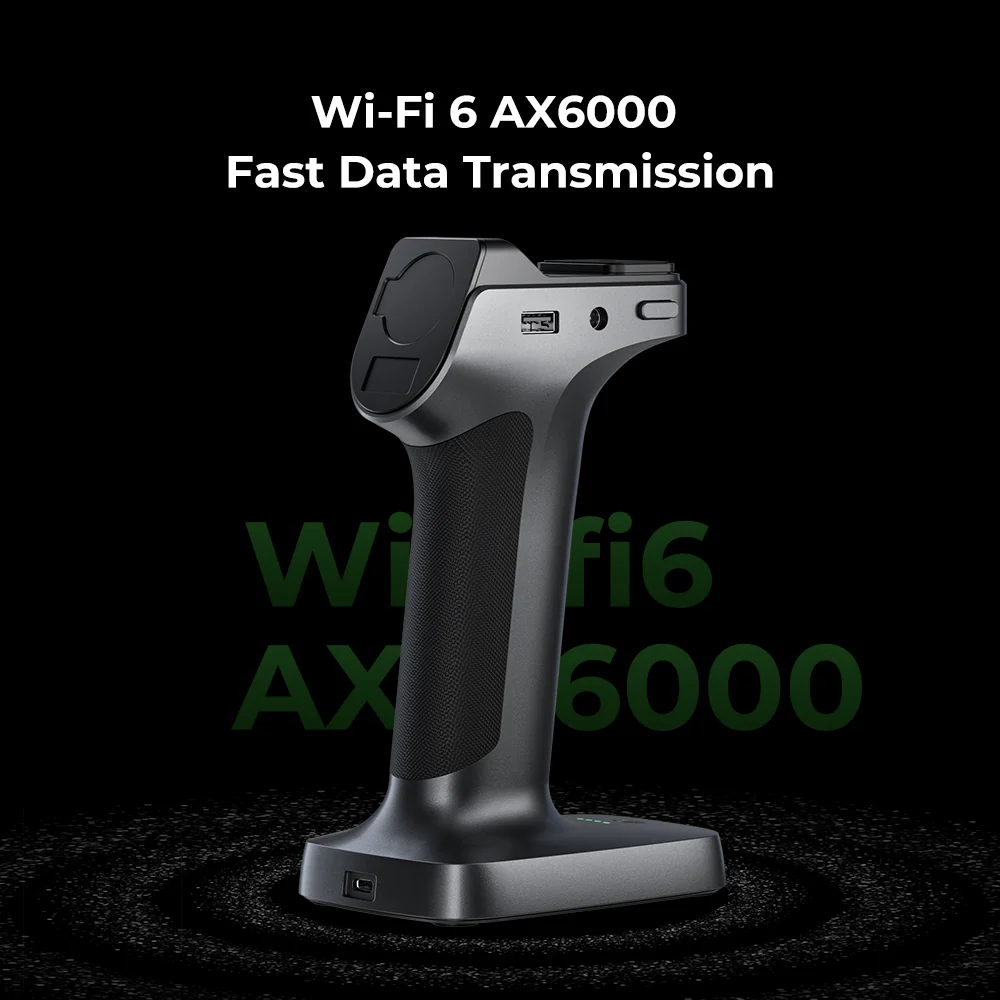

Wireless Connectivity	Wi-Fi 6 (AX6000)
Latency	10 ms
Data transfer rate	4.7 Gbps

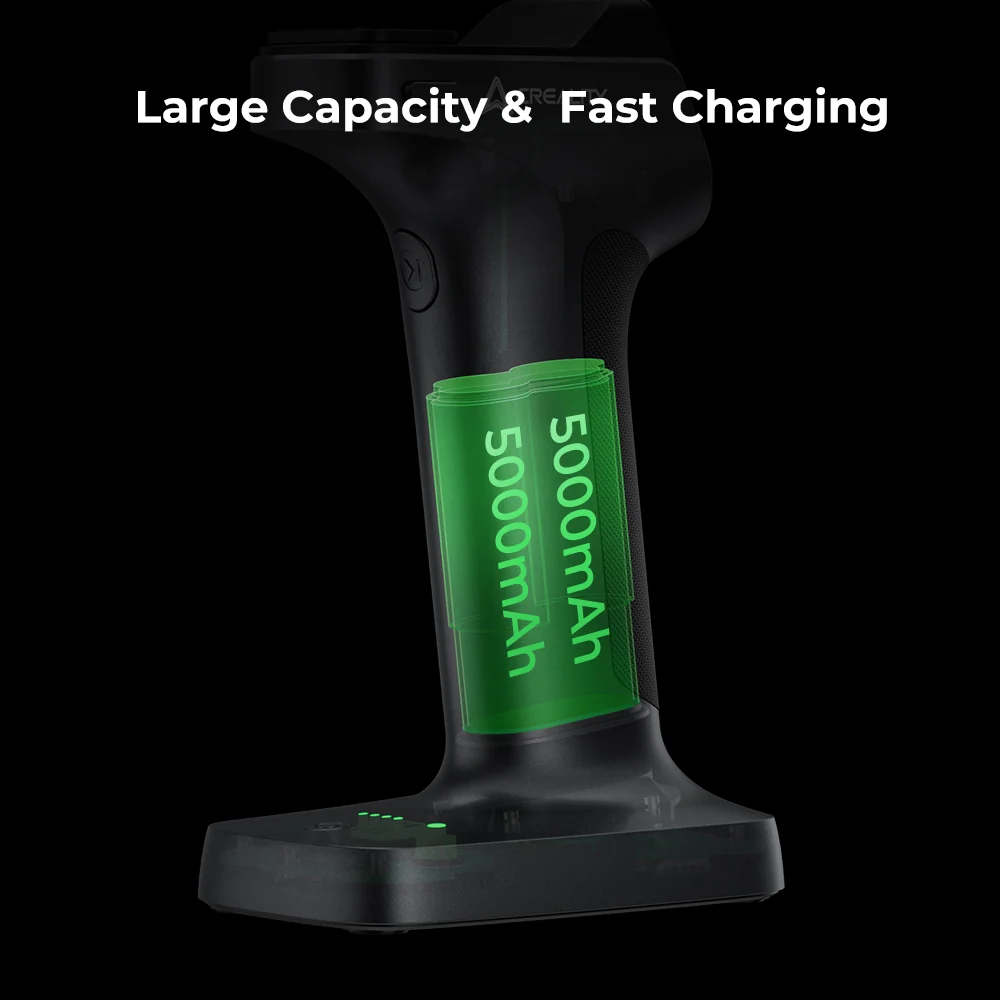

Battery Capacity	35,400 mWh (flight-safe)
Scanning time on battery	Up to 4 hours
Charging time to 80%	1.5 hours

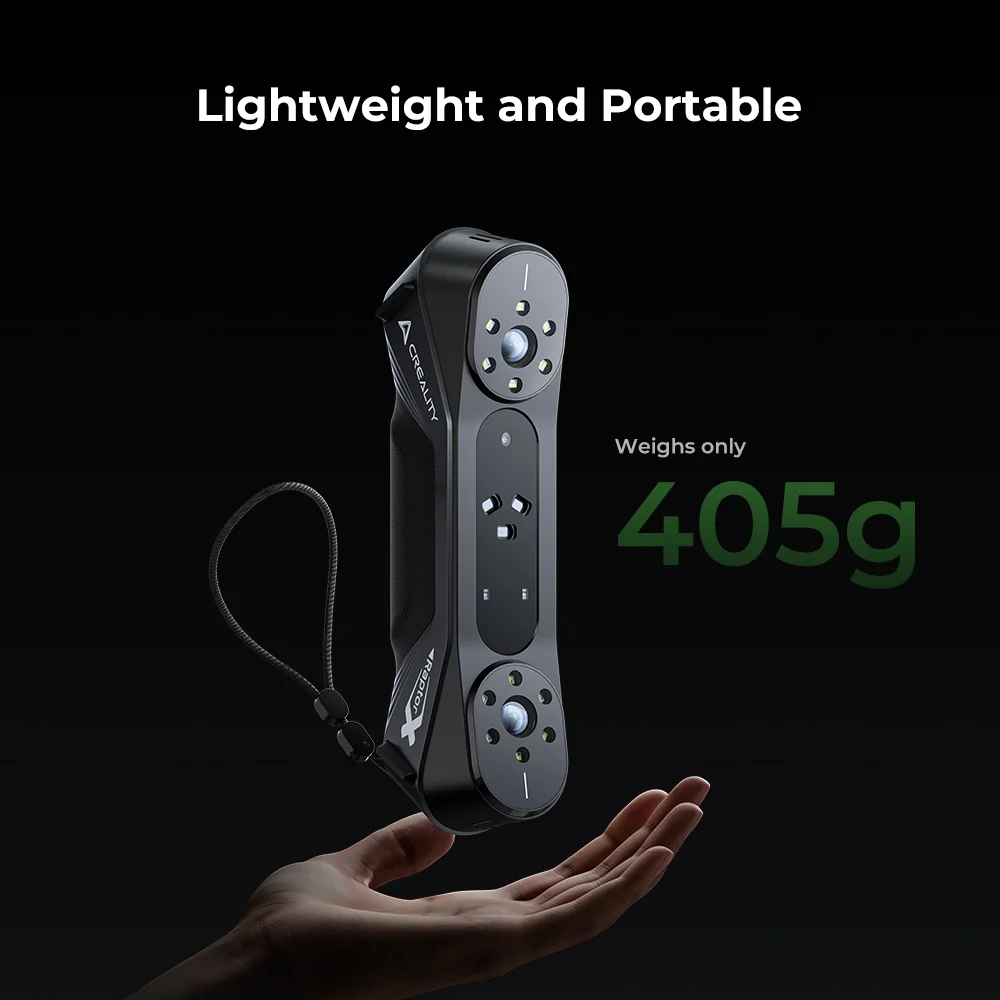

Weight	405 g
3D camera	2.3 MP resolution

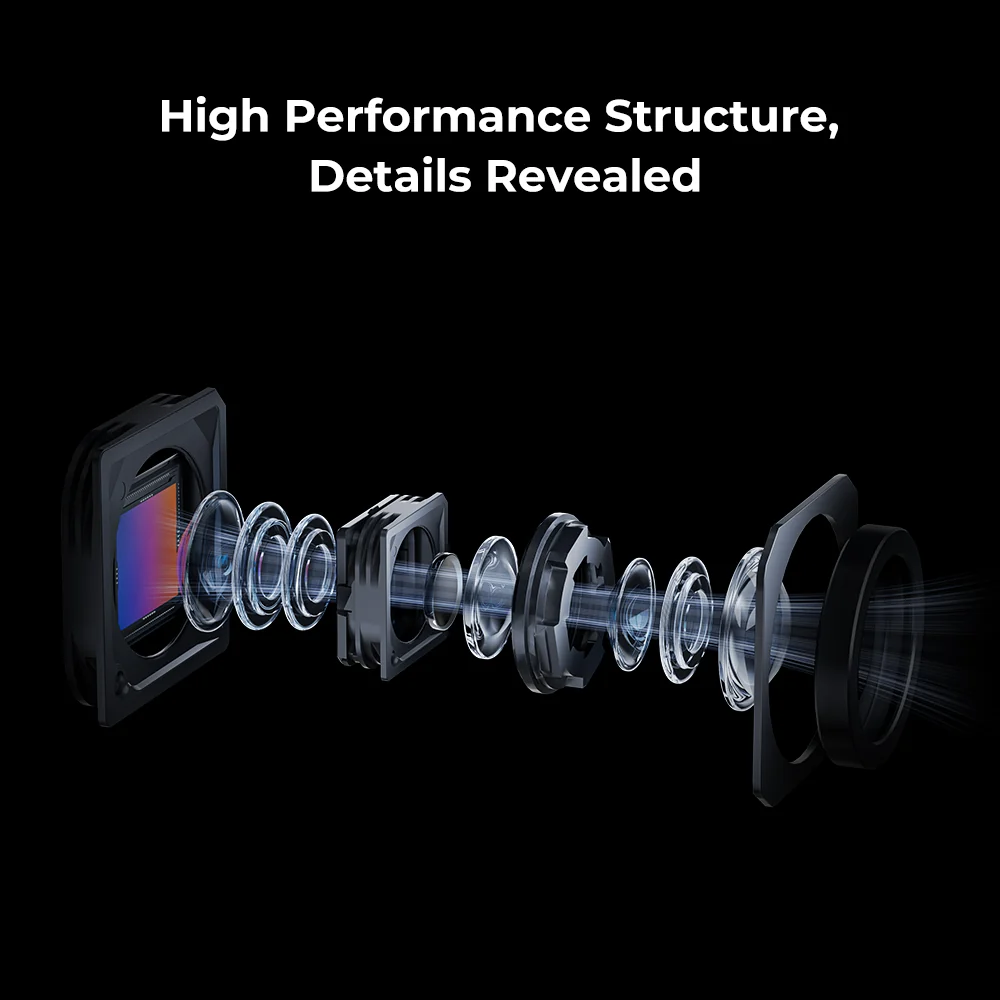

Lens specifications	φ20 mm, 9 glass elements, distortion under 5‰
Ambient light resistance – 7 lines	≤50,000 lux
Ambient light resistance – 34 cross lines	≤100,000 lux
Working Distance	200–600 mm (34 lines) / 150–400 mm (7 lines)
Single capture range	270×170 mm @ 300 mm to 665×574 mm @ 1000 mm
Color accuracy	24-bit full-color scanning in all modes
Companion software	CrealityScan
System requirements (Windows)	Windows 10/11 64-bit, i7-Gen7 or higher, Nvidia graphics card with 6GB+, 16GB+ RAM
System requirements (macOS)	macOS 11.7.7+, Apple M1/M2/M3 processor, 16GB+ RAM
Scanning type	Markerless scanning plus face and body modes

FAQs

Can the scanner work without a wired connection to the computer while scanning?

Yes. It connects wirelessly over Wi-Fi 6, with data transfer speeds of up to 4.7 Gbps.

Which software is used to process the scans?

It uses the companion CrealityScan software, which is compatible with Windows and macOS.

Is it suitable for scanning very small objects?

Yes. It can scan objects from 5×5×5 mm all the way up to 4000×4000×4000 mm.

Why It's Worth It

The Creality RaptorX gives you freedom of movement and professional accuracy at the same time — a trusted choice for anyone who needs precise, fast 3D scan results. Order it now from Avloon and start your projects with confidence.
