Creality Sermoon S1 3D Scanner – High Precision with Hybrid Blue Laser

Name: Creality Sermoon S1 3D Scanner – High Precision with Hybrid Blue Laser
Price: 13462 SAR
Availability: InStock

Original price was: SAR 21,540.00.Current price is: SAR 13,462.00.-38% OFFVAT included

The Creality Sermoon S1 delivers ultra-precise 3D scanning with accuracy up to 0.02 mm, using a hybrid technology that combines blue laser and near-infrared light, making it ideal for digital design, reverse engineering and professional-grade 3D printing.

In stock

Ongoing Offers
Secure Shopping
Genuine Product
Fast charging

100% Secure Payment

PaymentIconsStripe1e1757343799909 | Avloon

Specifications

Brand	Creality

Product Details

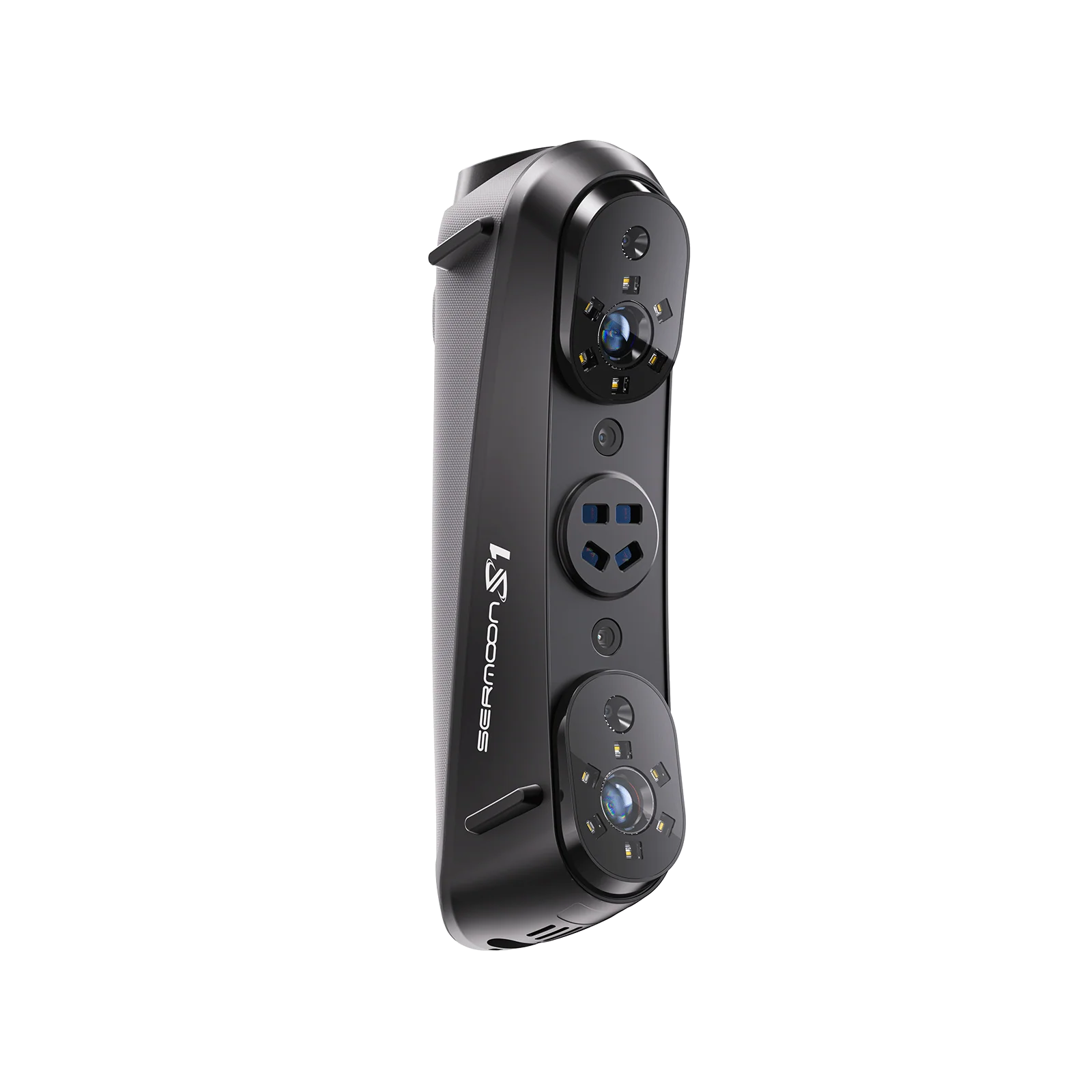

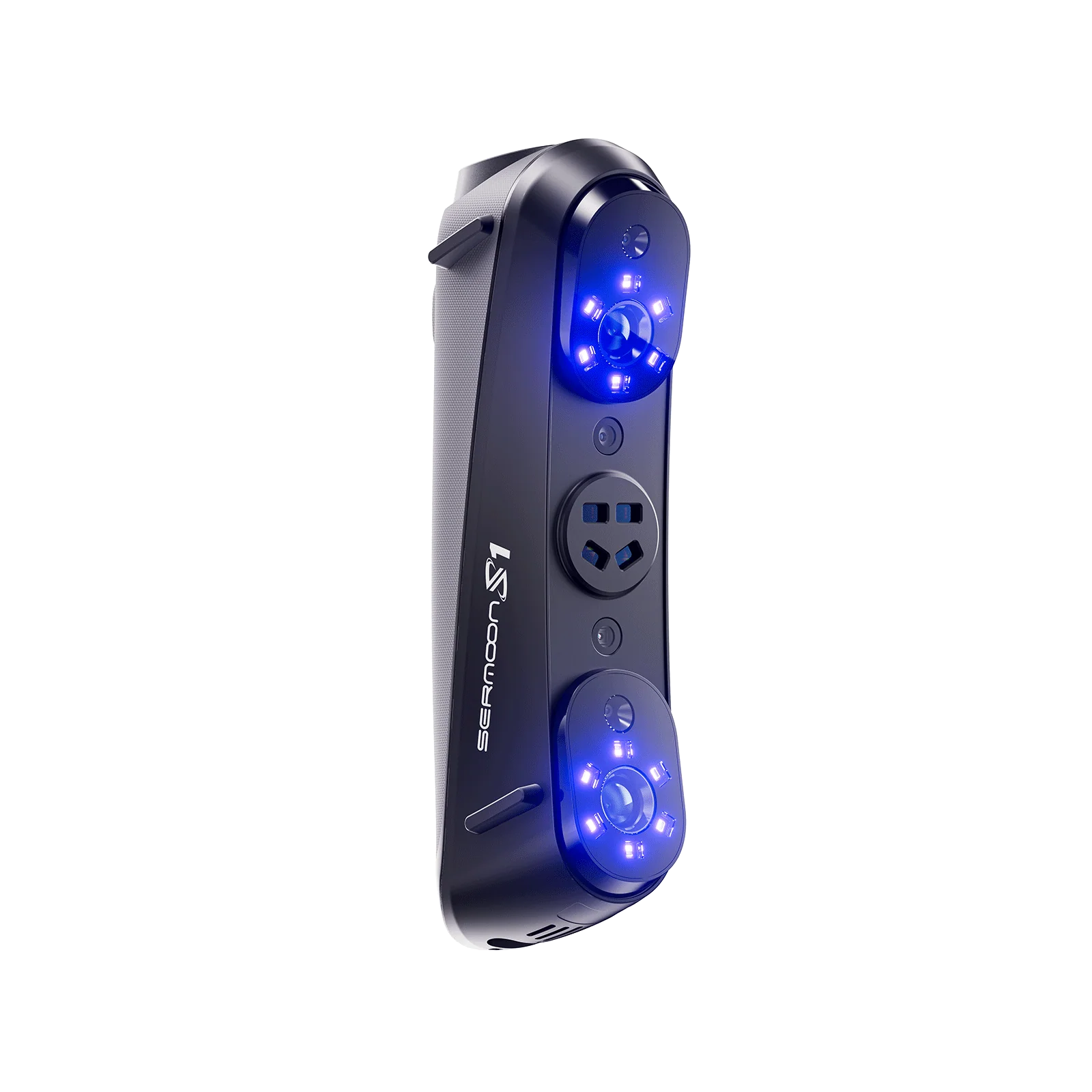

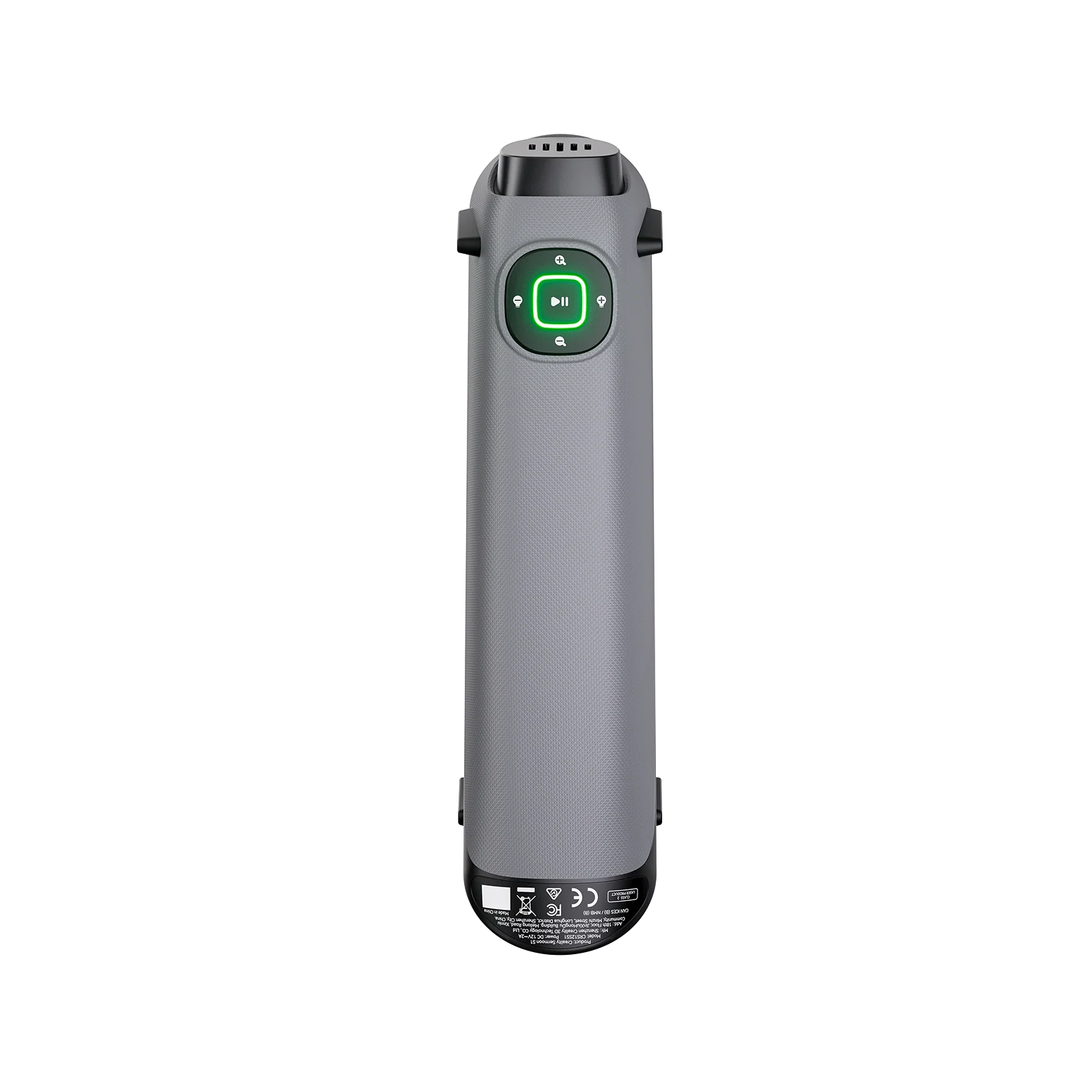

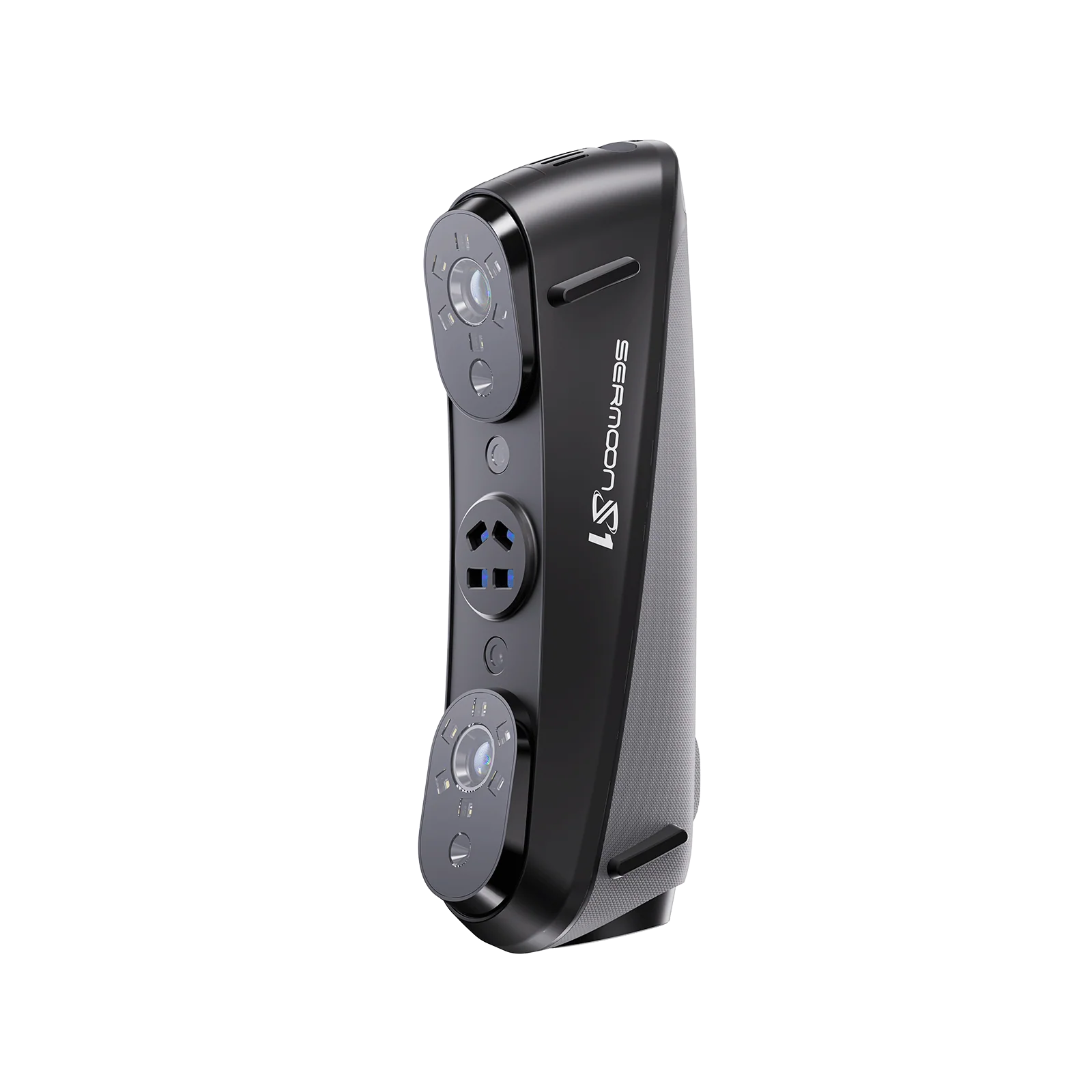

Creality Sermoon S1 3D Scanner

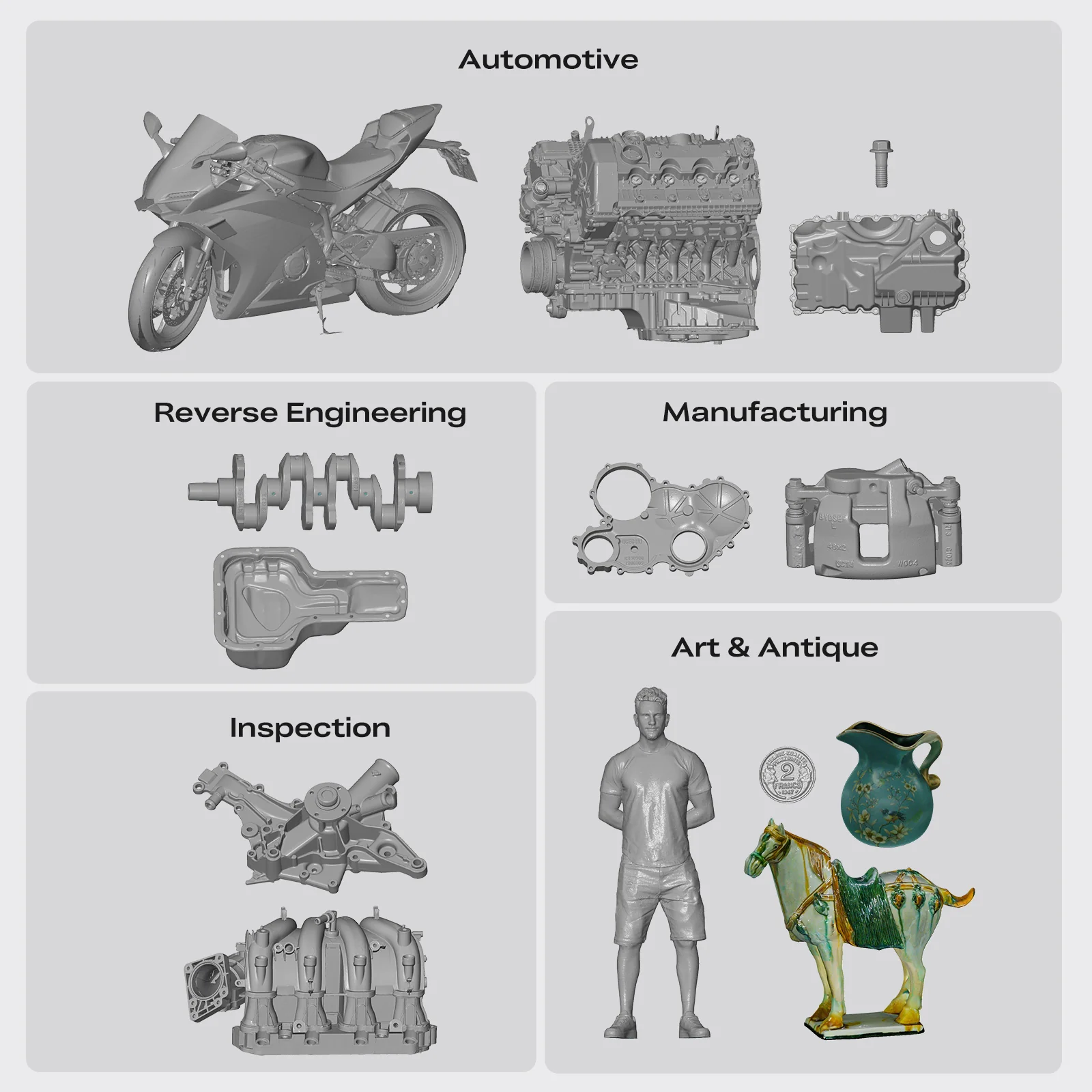

Imagine turning any object around you into a precise digital model in a matter of seconds. The Sermoon S1 from Creality opens up new possibilities in digital design and reverse engineering, thanks to a hybrid technology that combines blue laser with near-infrared structured light for remarkable accuracy up to 0.02 mm, whether the object is tiny or large. Whether you are a professional designer, an engineer or a passionate 3D printing hobbyist, this scanner lets you capture every fine detail with unmatched speed and precision.

Key Features

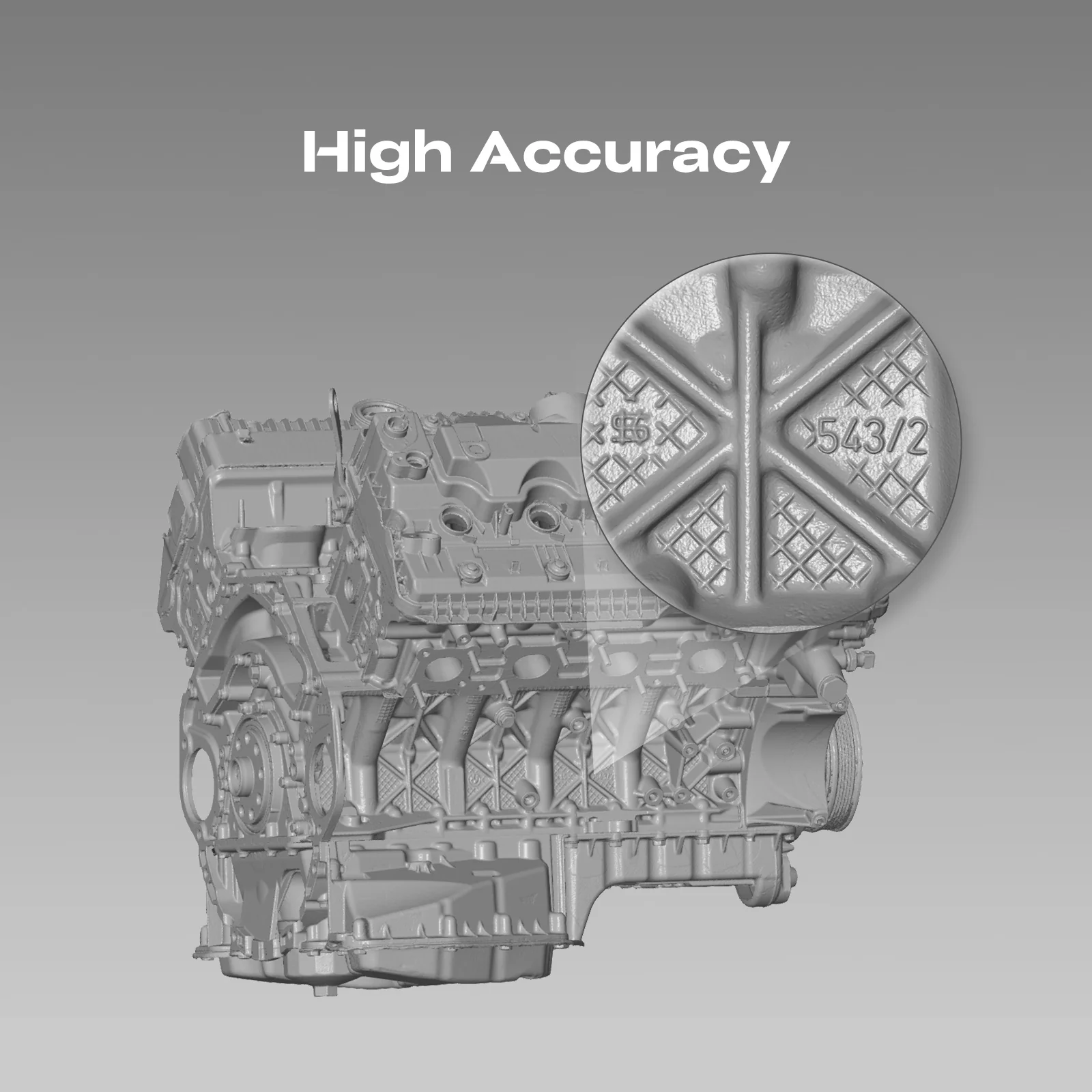

Exceptional accuracy up to 0.02 mm thanks to the hybrid scanning system

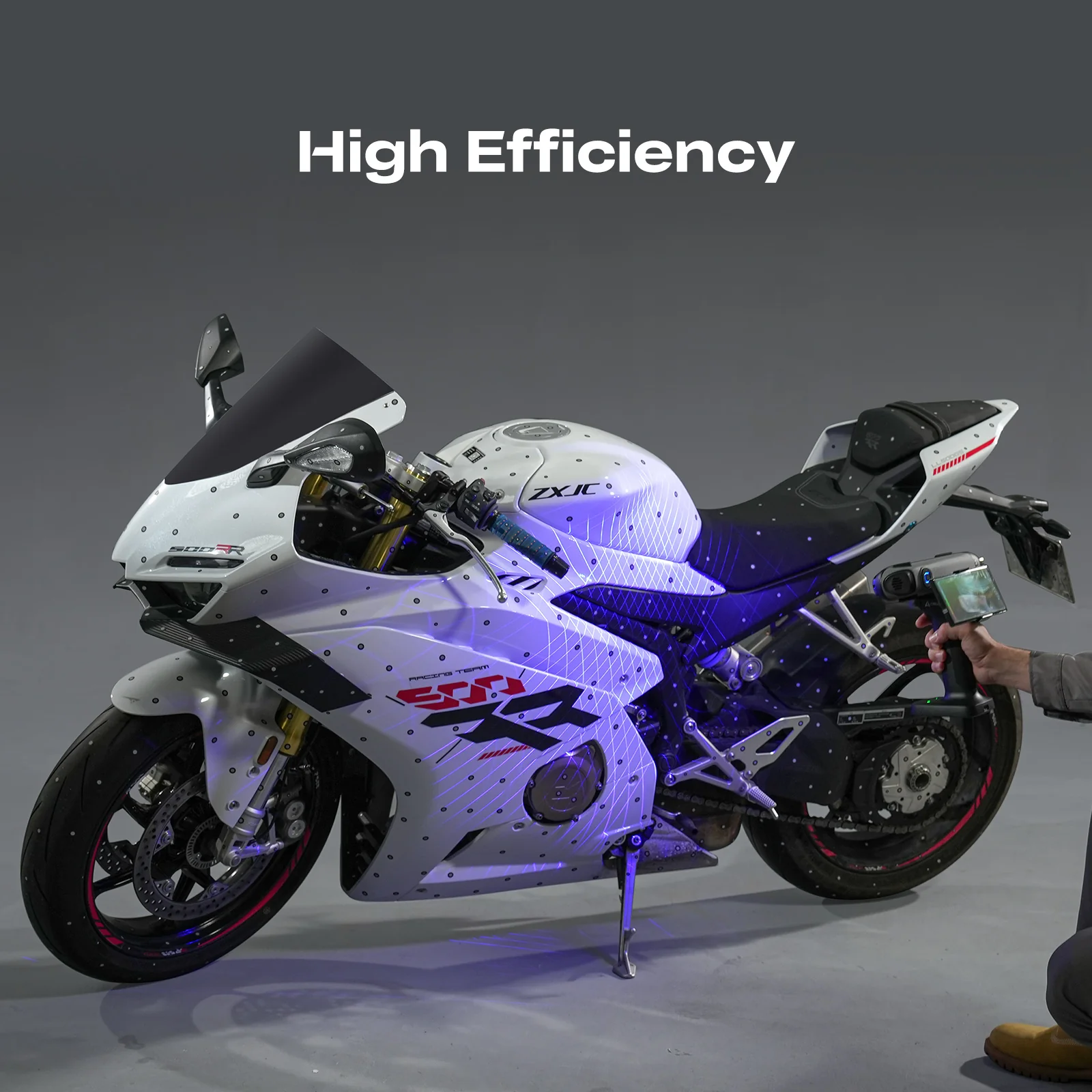

Remarkable data acquisition speed up to 1,428,000 points/s
Wide scanning range covering objects from 5 mm to 4000 mm
RGB color camera for lifelike texture and detail capture
AI-powered thermal compensation algorithm for consistent accuracy
One-Shot 3D Imaging technology that reduces frame loss and hand-shake drift
Full compatibility with Windows, macOS, Android and iOS

What's in the Box

Sermoon S1 3D scanner
Glass calibration board
Two sets of reflective markers (10 sheets of D3 and 10 sheets of D6)
12V/2.4A power adapter
4 plug adapters (AU, US, EU, UK)
USB 3.0 Y-cable for data and power
USB Type-C adapter
Carrying case for storing and transporting the scanner and accessories

Technical Specifications

Model Number

CRS23SS1

Marketing Name

Sermoon S1 Hybrid Blue Laser & NIR 3D Scanner

Accuracy

Up to 0.02 mm

Volumetric Accuracy

0.02 mm + 0.08 mm/m

Data Acquisition Speed

Up to 1,428,000 points/s

Frame Rate

Up to 90 frames per second (FPS)

Scan Resolution (Blue Laser)

Up to 0.1 mm

Scan Volume Range

From 5×5×5 mm³ to 4000×4000×4000 mm³

Scanning Technology

Hybrid system: single blue laser line + near-infrared (NIR) structured light

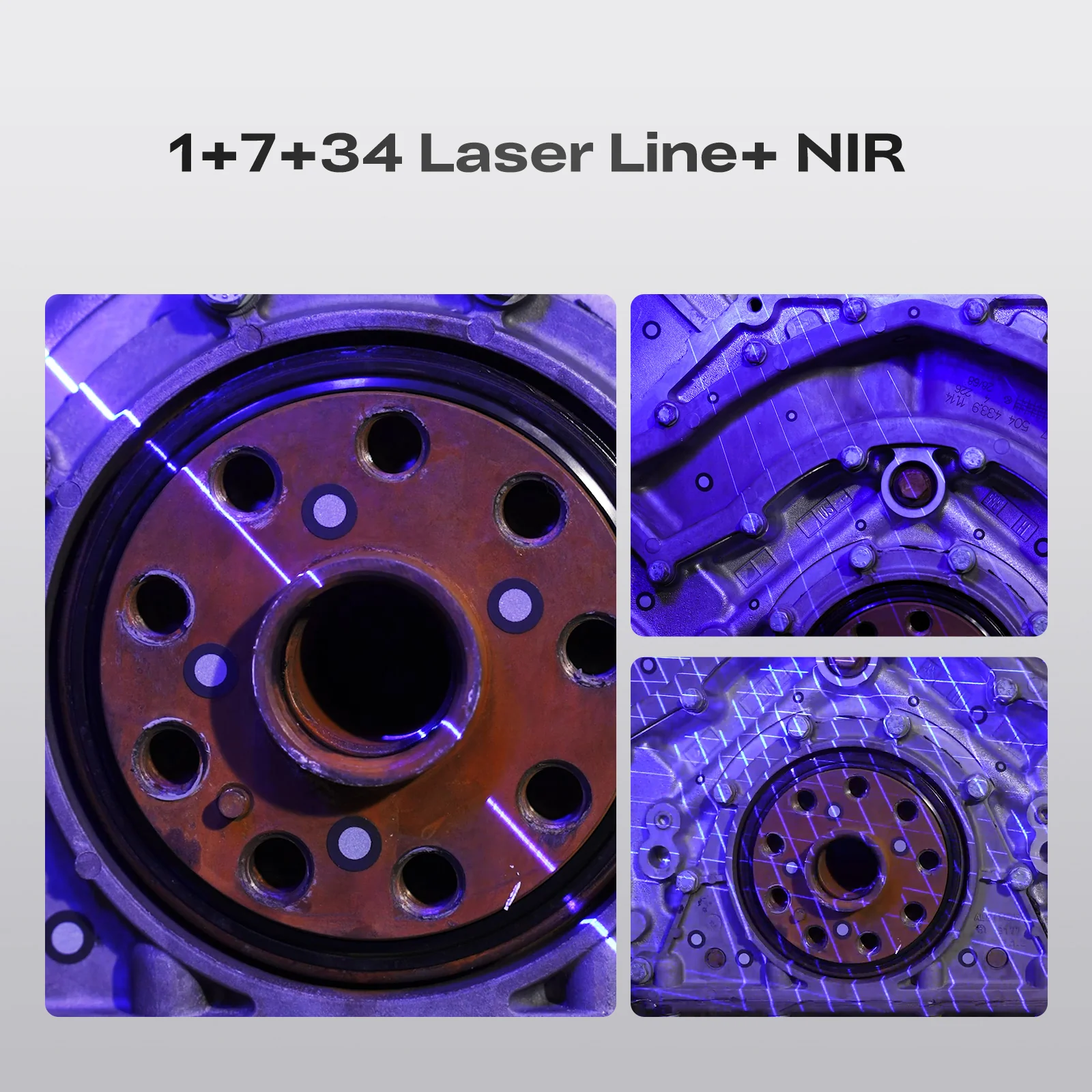

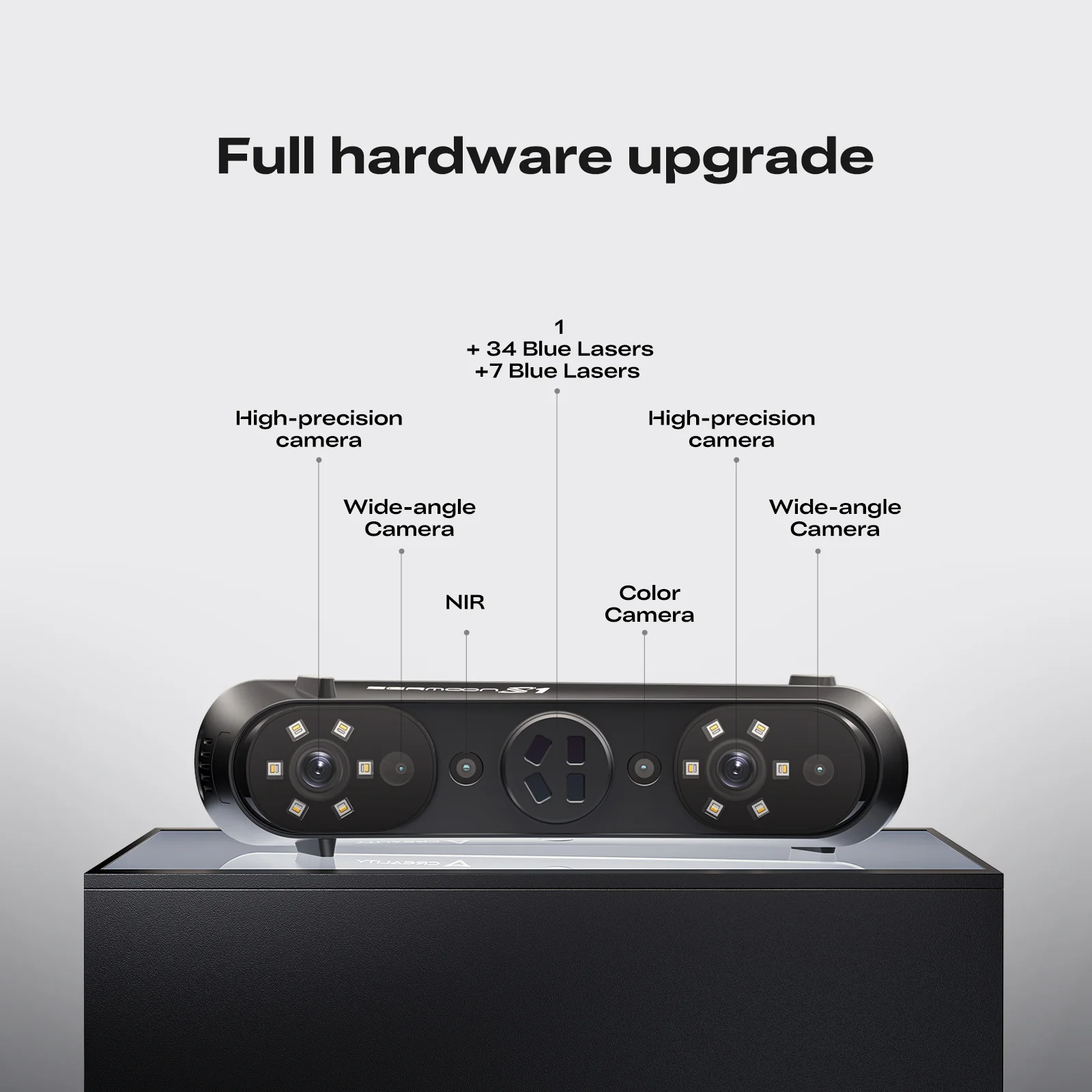

Laser Array

1 + 7 + 34 blue lasers

Color Camera (RGB)

2 MP with dual-color LED texture lighting

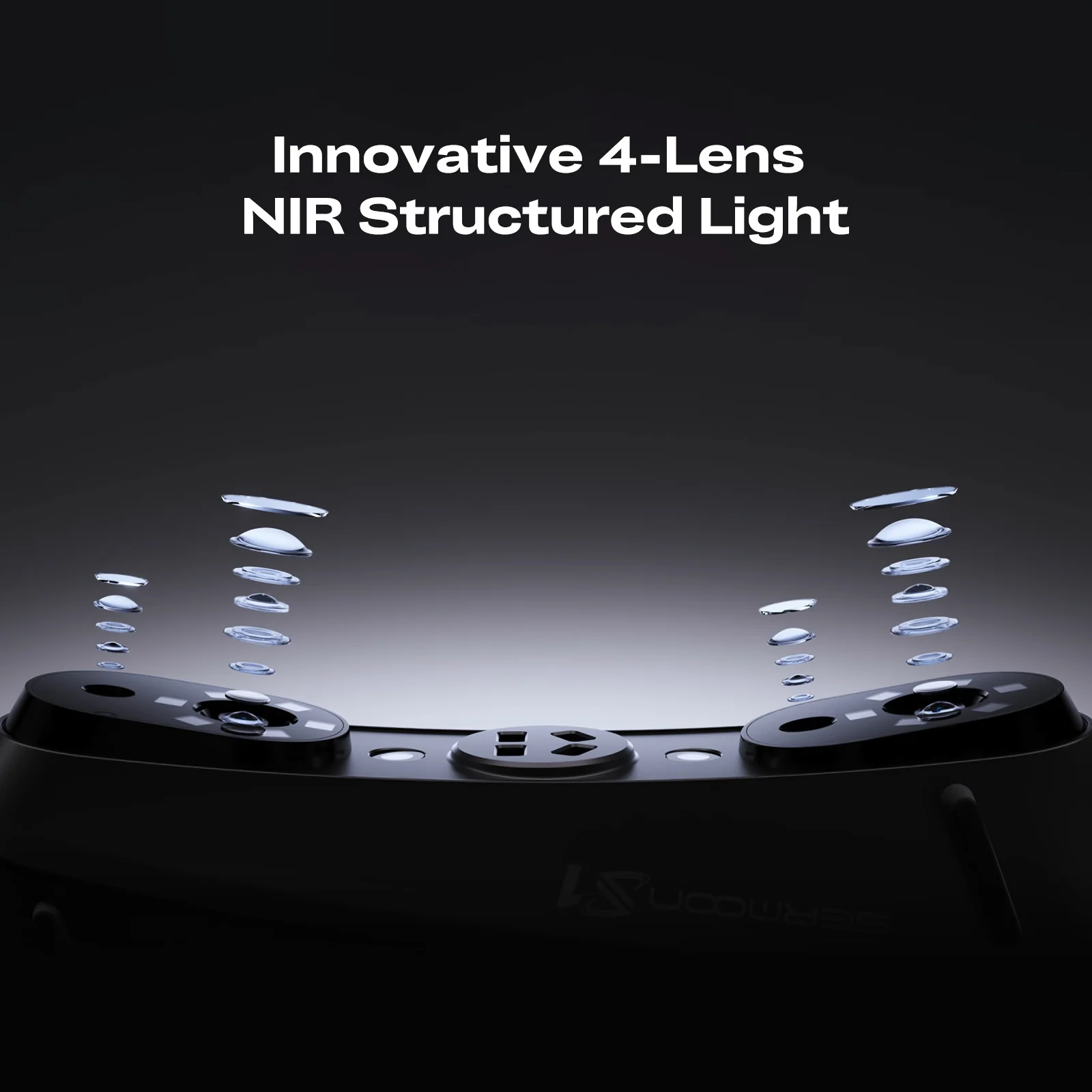

Stereo Vision

4-lens stereo vision system

Alignment Modes

Marker / Global / Geometry / Texture

Thermal Compensation

AI-powered thermal compensation algorithm with a thermal management system

Imaging Technology

One-Shot 3D Imaging to reduce frame loss and drift caused by hand shake

Supported Operating Systems

Windows, macOS, Android, iOS

Data and Power Connections

USB 3.0 Y-cable for data and power, USB Type-C adapter

Power Adapter

12 V / 2.4 A

Minimum Recommended Computer Specs

Intel Core i7-Gen10 processor, NVIDIA graphics card with 8GB VRAM, 32GB RAM, Windows 10/11 (64-bit)

FAQs

How accurate is the scanner?

It delivers accuracy up to 0.02 mm and volumetric accuracy of 0.02 mm + 0.08 mm/m, making it well suited to highly precise applications.

Does it need a computer with special specs?

Yes. For smooth software performance, we recommend a computer with an Intel Core i7-Gen10 processor or higher, a graphics card with 8GB VRAM and 32GB of RAM.

Which operating systems are supported?

The scanner supports Windows, macOS, Android and iOS.

Can it scan both very small and large objects?

Yes. Its flexible technology covers a scanning range from 5×5×5 mm³ to 4000×4000×4000 mm³.

Why It's Worth It

The Creality Sermoon S1 brings together high accuracy, exceptional speed and ease of use, making it the ideal choice for anyone looking for a reliable professional 3D scanning tool. Order it now from Avloon and start your journey into digital design with confidence.
